1.4.2. Test Case— Avalon® Streaming Reverse Loopback

To run the hardware test case, follow these steps:

  1. Download the reference design from Design Store and restore the design using Intel® Quartus® Prime software.
  2. Launch the Intel® Quartus® Prime software and open the project file (top.qpf).
  3. Click Processing > Start Compilation to compile the design.
  4. After the design is compiled successfully, a programming file (top.sof) is generated and located in the <project_directory>/output_files directory.
  5. Set up the Intel® Stratix® 10 GX L-Tile FPGA Development Board.
    1. Connect the external packet generator to the RJ-45 port of the development board (J10) by using Ethernet Cat5e cable.
    2. Connect the programming cable to the JTAG connection port (CN1).
    3. Connect the power adapter to the power supply input (J27).
  6. In the Intel® Quartus® Prime software, select Tools > Programmer to launch the programmer.
  7. Download the generated programming file (top.sof) to the development board using the Programmer application.
  8. Reset the Ethernet design by either these methods:
    • Press the USER_PB0 push button.
    • Toggle the In-System Source and Probes bit[0] from 0 to 1 and back to 0.
    Note: The design must be reset whenever you begin a new test. The RESET_N pin of the Marvell PHY needs to be kept low for 10 ms because the minimum reset requirement of the Marvell PHY is 10 ms.
  9. Open the config.tcl script using text editor, which is located in the <project_directory>/sc_tcl directory. Ensure that you set the following parameters accordingly to achieve intended operating speed rate and mode. For more information, refer to Configuration Script.
    1. Ensure that you set ETH_SPEED to 0 and to ENA_10 to 0 so that the MAC is not forced to operate at 1000 Mbps only. This allows the MAC to follow the speed rate of the PHY set in step 9.c.
    2. If you want to operate the MAC in 1000 Mbps only, set ETH_SPEED to 1. However, Intel does not recommend this setting because it causes link failure if the PHY is running at 10/100 Mbps only.
    3. Selection of speed rate:
      1. For 10 Mbps only, set PHY_ETH_SPEED to 10.
      2. For 10/100 Mbps only, set PHY_ETH_SPEED to 100.
      3. For 10/100/1000 Mbps, set PHY_ETH_SPEED to 1000.
    4. Ensure that you set the LOOP_ENA and PHY_LOOPBACK parameters to 0 so that the MAC/PHY loopback mode or PHY loopback mode is disabled.
  10. In the Intel® Quartus® Prime software, select Tools > System Debugging Tools > System Console to launch the System Console.
  11. In the System Console command shell, change the directory to <project_directory>/sc_tcl.
  12. Run the following command in the System Console command shell to start TSE MAC, TSE PCS, and on-board PHY chip configurations:
    source config.tcl

    The System Console displays the copper link connection status and the resolved operating speed and duplex mode of on-board PHY Chip (refer to Figure 12).

  13. Start to transmit the Ethernet packets from the external packet generator to the development board. Verify the number of packets that successfully loop back to the external packet generator.
  14. Run the following command to view the TSE MAC statistic counters:
    source tse_stat_read.tcl

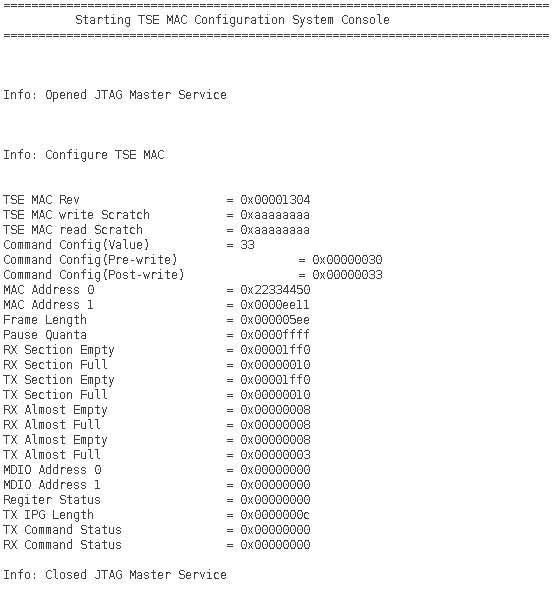

Figure 10. Sample Output—MAC Configuration Summary

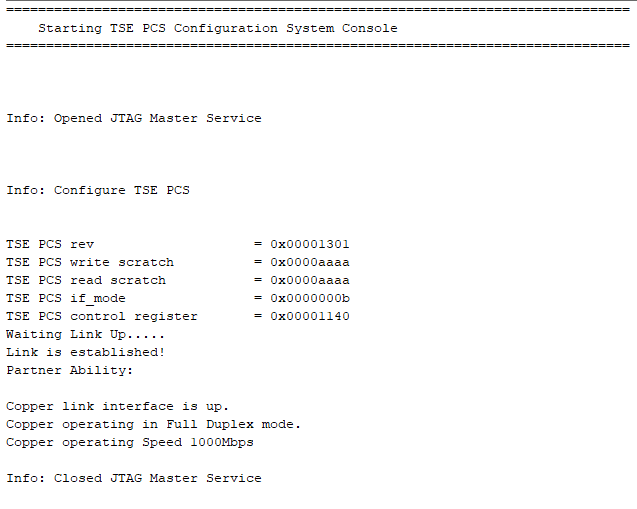

Figure 11. Sample Output—PCS Configuration Summary

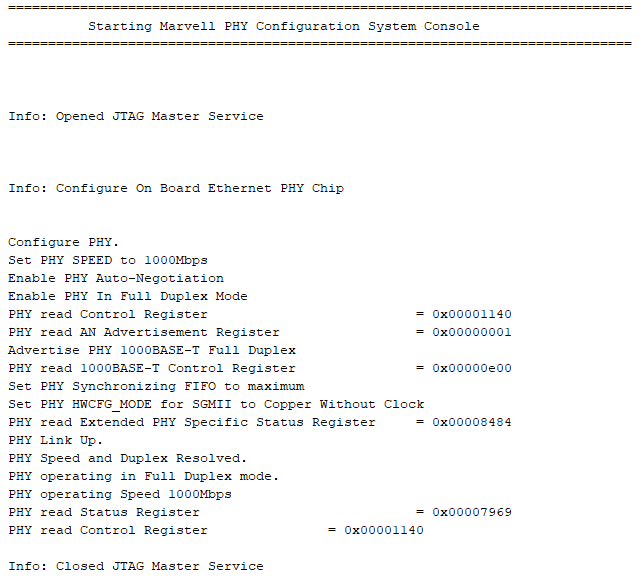

Figure 12. Sample Output—On-Board PHY Chip Configurations

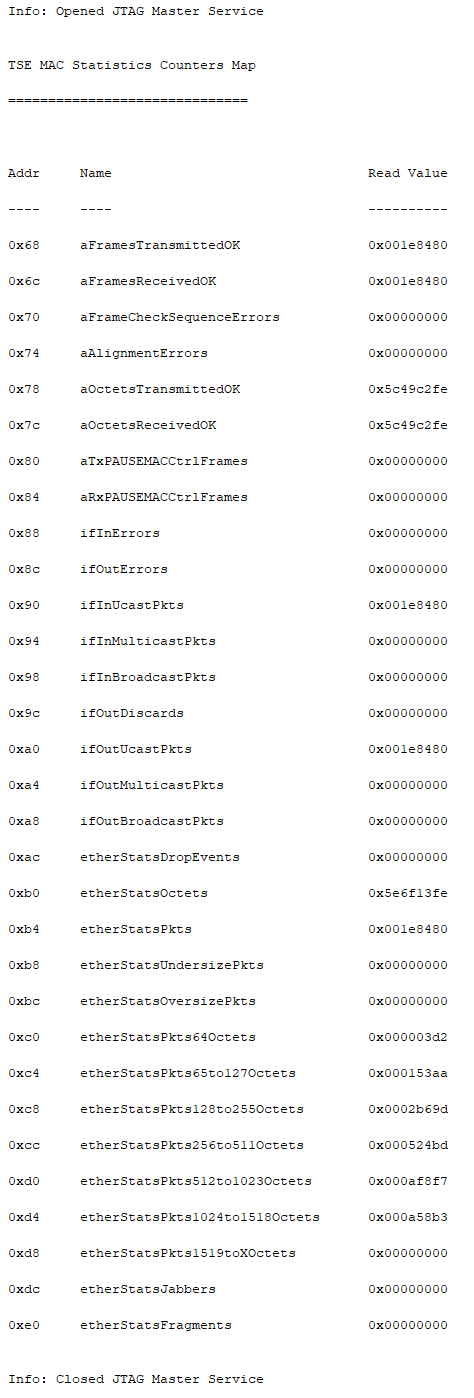

Figure 13. Sample Output—TX and RX MAC Statistic Counters
