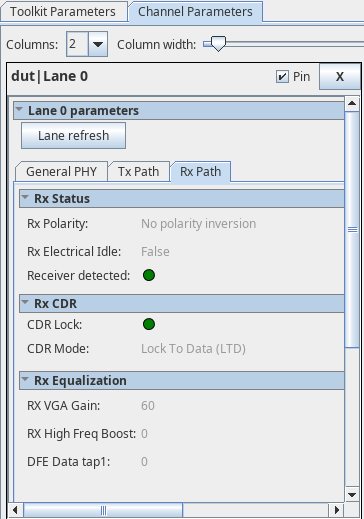

22.214.171.124.3. RX Path
This tab allows you to monitor and control the receiver settings for the channel selected.
|RX Status||RX Polarity||No polarity inversion, Polarity inversion||
Indicates RX polarity inversion for the selected lane.
No polarity inversion: no polarity inversion on RX.
Polarity inversion: polarity inversion on RX.
|RX Electrical Idle||True, False||
Indicates if RX is in electrical idle or not.
True: RX is in electrical idle.
False: RX is out of electrical idle.
|Receiver Detected||Green, Grey||
Green: Far end receiver is detected.
Grey: Far end receiver is not detected.
|RX CDR||CDR Lock||Green, Red||
Indicates the CDR lock state.
Green: CDR is locked.
Red: CDR is not locked.
|CDR Mode||Locked to Reference (LTR), Locked to Data (LTD)||
Indicates the CDR lock mode.
LTR: CDR is locked to reference clock.
LTD: CDR is locked to data.
|RX Equalization||RX VGA Gain||
<0 to 127>
Indicates the RX AFE VGA gain value.
|RX High Freq Boost||
<0 to 63>
Indicates the RX AFE high frequency boost value.
|DFE Data Tap1||<0 to 63>||
Indicates the adapted value of DFE tap 1.
