1. Introduction
2. Migration Scope
3. Functional Area
4. Quartus® Prime Software Design Migration
5. Document Revision History for Device Migration Guidelines: Agilex™ 3 FPGAs and SoCs C-Series

1. Introduction

This application note provides migration guidelines for Agilex™ 3 C-Series devices. The guidelines covers various device features to help you plan your Quartus® Prime software and board design up front to ensure seamless migration between devices within the same package.

Figure 1.  Agilex™ 3 C-Series Device
Note: Refer to the Agilex™ 3 FPGAs and SoCs Device Overview for Ordering Part Number (OPN) Structure details.

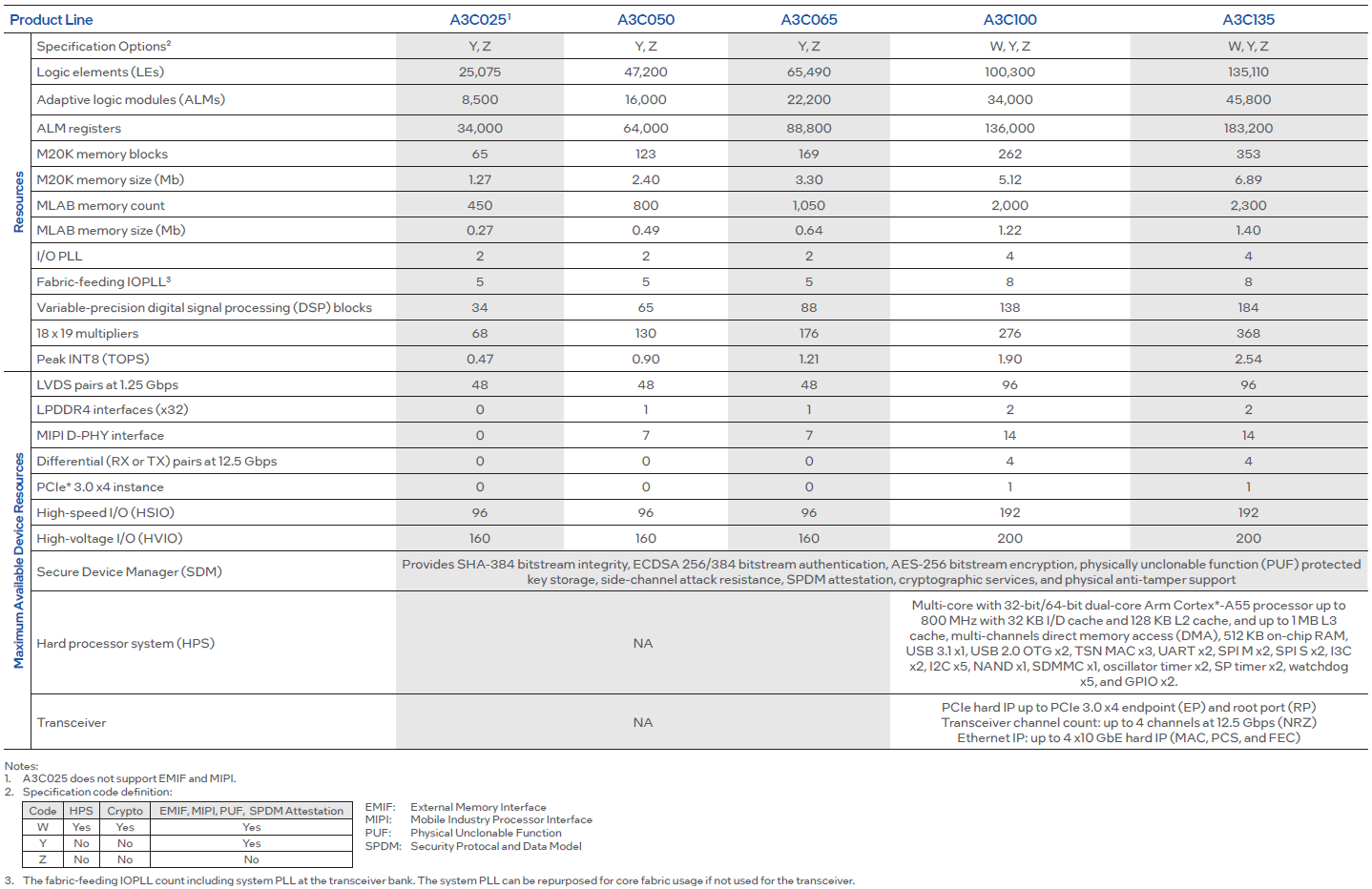

Figure 2. Package Options, Migrations, and I/O Pins
  • The arrows indicate the package migration paths. The shades represent the devices included in each path.
  • Migration path shown includes both vertical and conditional migration scenario. Refer to Migration Scope for more details.
  • To achieve full I/O1 migration across devices in the same migration path, restrict I/Os and transceivers utilization to match the device with the lowest I/O and transceiver counts.
Related Information
1
  • HSIO – High-speed I/O
  • HVIO – High voltage I/O
  • LVDS – Low voltage differential signaling channels
