3.6. Programming the Nios V/g Software to the Device for the Drive-on-Chip Design Example for Agilex Devices

  1. Program top.sof.
    The software is automatically copied to the CPU memories for running using .hex files located in <project>/software/dniosv_subsystem/build/bin/mem_init to initialize the memories in the system.
  2. Run the JTAG UART terminal using the command juart-terminal -d 1 to see the design software application output.

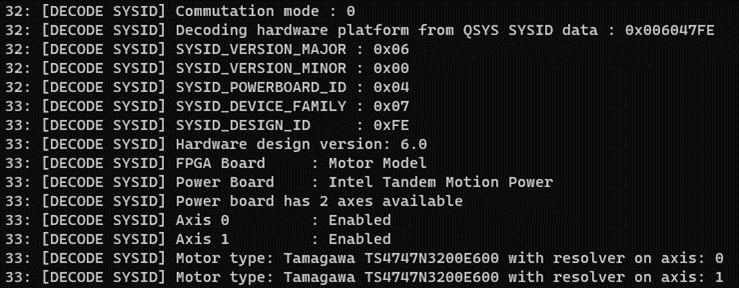

    Figure 5. Software application Output
  3. If you modify the software, program the Nios V soft processor using the command line:
    >>niosv-download <project>/software/dniosv_subsystem/build/bin/app.elf -g
