3.7. Debugging and Monitoring the Drive-on-Chip Design Example for Agilex 5 Devices with Python GUI

  1. Install Python version 3.10.5
  2. Install non Python Standard Libraries:
    • Pyside6 (6.3.2)
    • Pyqtgraph (0.13.1)
    • Numpy (1.23.2)
  3. Run >> pip install -r requirements.txt
  4. In a terminal, run >> python <project>/gui/__main__.py
  5. Select the correct JTAG host from Demo selection. Usually AE5….

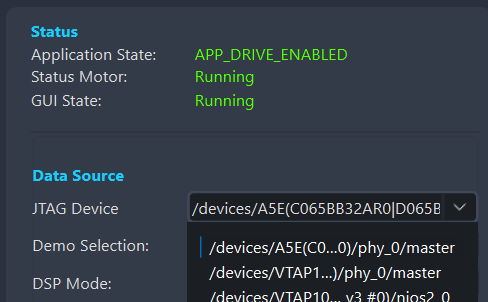

    Figure 6. Select JTAG Device

Section Content
GUI Control Parameters Pane for the Drive-on-Chip Design Example for Agilex Devices
GUI Main Panes for the Drive-on-Chip Design Example for Agilex Devices
Tuning the PI Controller Gains
Controlling the Speed and Position Demonstrations
Monitoring Performance
