10.3. Creating a Session in the Intel® Code Builder for OpenCL™

Perform the following steps to create a session in the Intel® Code Builder for OpenCL™ :

  1. Select Code-Builder > OpenCL Kernel Development > New Session.
  2. Specify the session name, path to the folder to store the session file and the content of the session (can be either an empty session or with a predefined OpenCL code).
  3. Click Done.

Once the session is created, the new session appears in the Code Builder Sessions Explorer view.

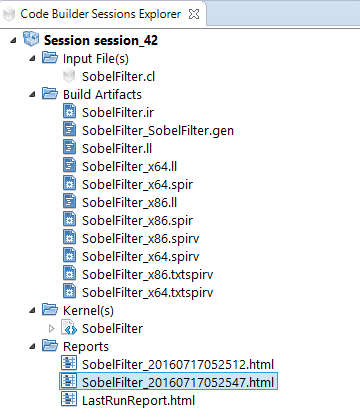

Figure 26. Code Builder Sessions Explorer
Note: If you do not see the Code Builder Session Explorer view, select Code-builder > OpenCL Kernel Development > Windows > Code Builder Session Explorer.
