3.1. Cyclone® 10 LP EPE - Main Worksheet

The Main worksheet of the Early Power Estimator (EPE) spreadsheet summarizes the power and current estimates for the design. The Main worksheet displays the total thermal power, thermal analysis, and power supply sizing information.

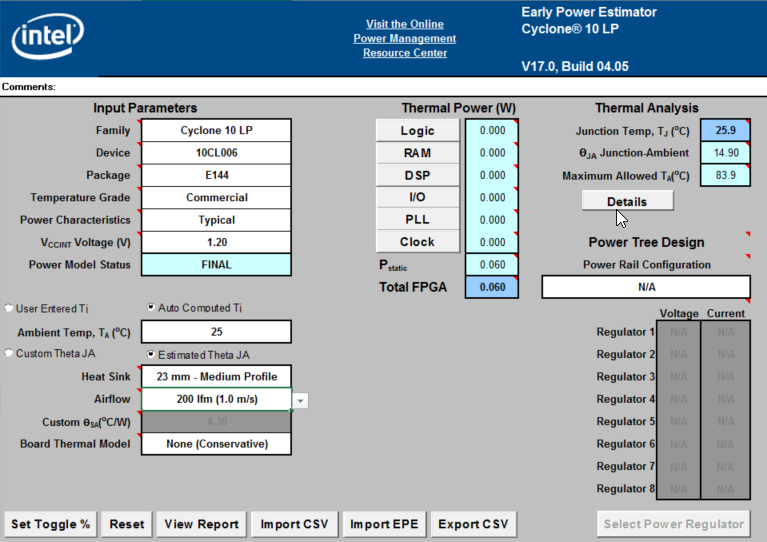

Figure 1. Main Worksheet of the EPE Spreadsheet

The Export CSV feature provides a lightweight export file as compared to the EPE file. The generated .csv file has a similar file format to the EPE spreadsheet. The following sections describe the sections in the EPE Main worksheet.
