7. Mechanical Information

Intel® FPGA PAC D5005 Dimensions

  • Dual-slot PCIe* card
  • PCIe* x16 mechanical with hockey stick card retainer
  • 3/4-length with optional full-length PCIe* server extension mounting bracket (included)
  • PCB thickness 0.062 inches
  • Card Weight is 1 Kg.
Note: All dimensions in mm.
Figure 3.  Intel® FPGA PAC D5005 Dimensions

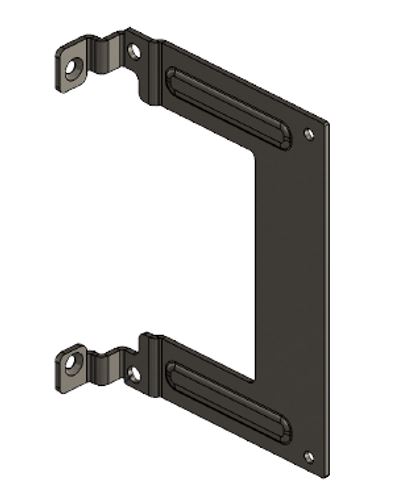

Figure 4. Extension Mounting Bracket

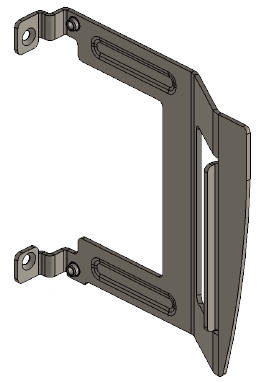

Figure 5. Non-coplanar Extension Bracket
