6.10.1.3. RLDRAM 3

The RLDRAM 3 × 36 (reduced latency DRAM) controller is designed for use in applications requiring high memory throughput, high clock rates and full programmability.

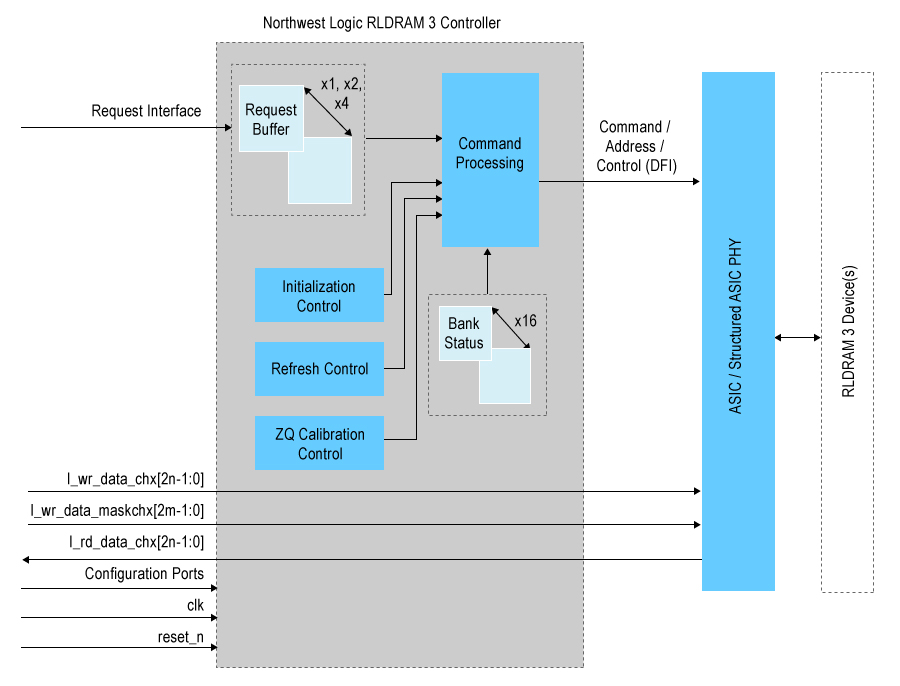

Figure 44. RLDRAM 3 Block Diagram
