For x4 BAS:
  1. Set the PCIe_SLOT “2” in rte_pmd_mcdma.h(dpdk/drivers/net/mcdma/rte_pmd_mcdma.h)
  2. X4 BAS supports burst length 32 by default. In the file perfq_app.h (dpdk/examples/mcdma-test/perfq/perfq_app.h)
If the BAS support is enabled on hardware, enable the following flag in: dpdk/dpdk/drivers/net/mcdma/rte_pmd_mcdma.h
#define PCIe_SLOT 0 /* 0 – x16, 1 – x8, 2 - x4 */
To enable the config IFC_QDMA_INTF_AVST in the file "software/dpdk/dpdk/patches/v20.05-rc1/dpdk/drivers/net/mcdma/base/mcdma_ip_params.h", use the following command:


  1. To verify the write operation:
     ./build/mcdma-test -- -b 0000:01:00.0 --bar=0 --bas -s 512 -t

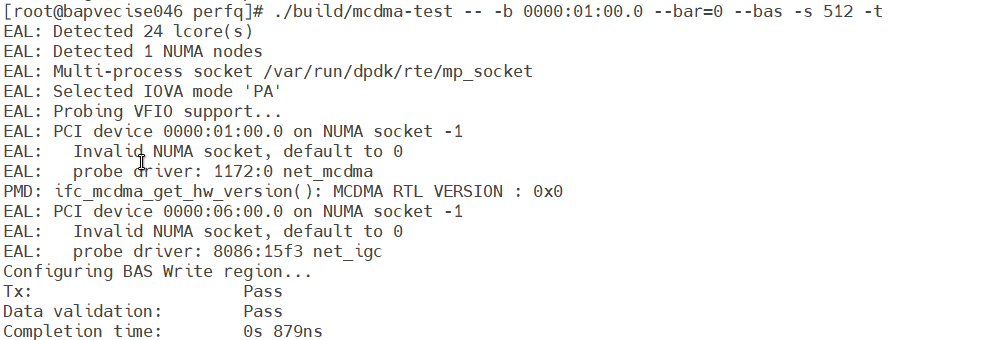

    Figure 42. BAS Write Operation
  2. To verify the read operation:
     ./build/mcdma-test -- -b 0000:01:00.0 --bar=0 --bas -s 512 -r

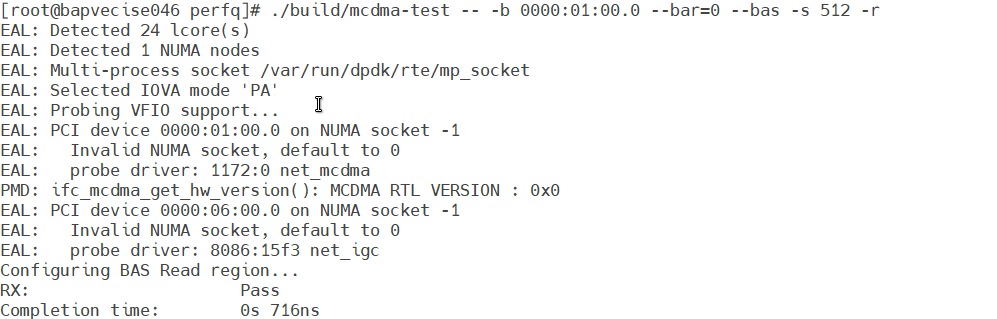

    Figure 43. BAS Read Operation
  3. To verify the write and read operation:
    ./build/mcdma-test -- -b 0000:01:00.0 --bar=0 --bas -s 512 -z

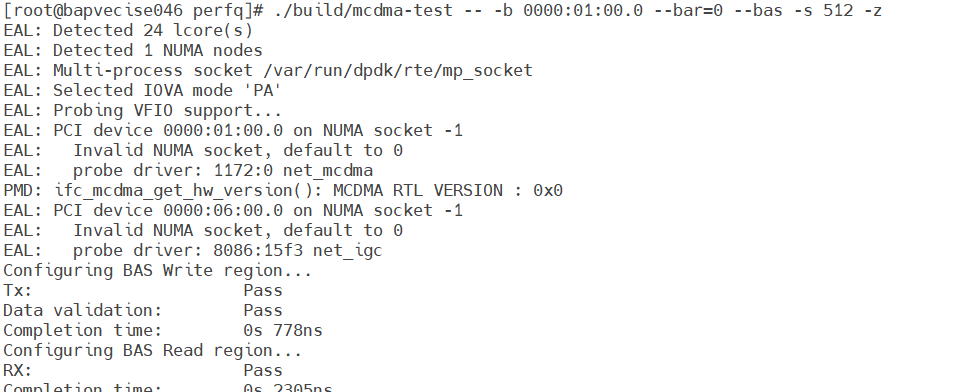

    Figure 44. BAS Write and Read Operation

    Performance test:

    The below log is collected on Gen3x16 H-tile
     ./build/mcdma-test -- -b 0000:01:00.0 --bar=0 --bas_perf -s 16384 -z
    Figure 45. Performance Test
    Note: For DPDK: VF/PF cannot run BAM+BAS+MCDMA simultaneously within one VM or hypervisor, You need to run one instance of VF / PF in independent VM.
