3.4. PTC Searchable Drop-Down Lists

Starting with the 23.3 release, PTC now supports using partial or full-text string search on all drop-down lists, in all GUI components, including the resource pages.

The following images show examples of searching with a partial string where the drop-down list gets refined and displays a subset of values matching the string:

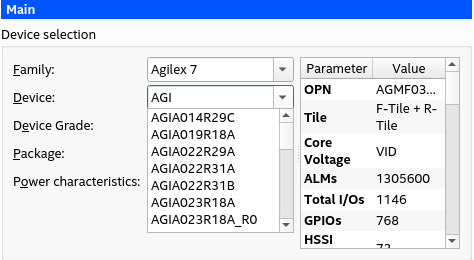

Figure 29. Example 1: Refining the Device Drop-Down List

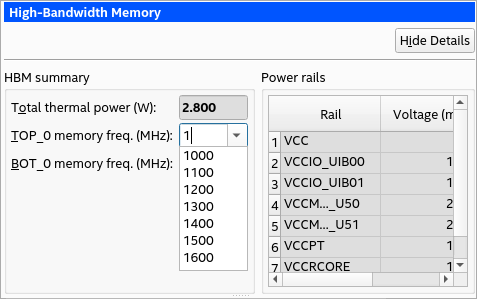

Figure 30. Example 2: Refining the Memory Frequency Drop-down List
