1.2.2.3. Boot from NAND

When booting from NAND, the Preloader images are located at the beginning of the flash. Each image has to start at NAND flash block boundary.

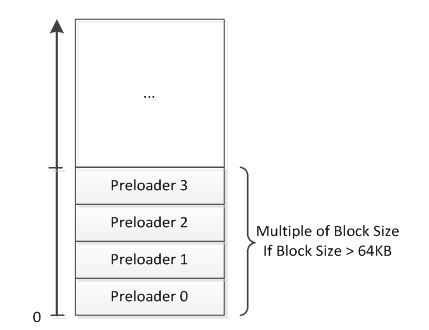

Figure 5. NAND Flash Block
Note: Booting from NAND is not available on the Cyclone V Development kit.
