3.5. HSSI Support Logic Generation

To generate the HSSI Support Logic, follow these steps:
In the Quartus® Prime Pro Edition software, open the Compilation dashboard and click the HSSI Support Logic Generation.

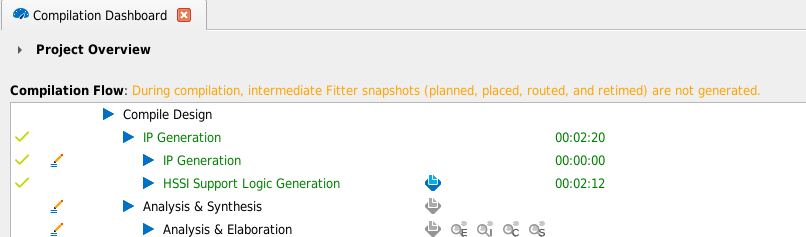

Figure 19. HSSI Support Logic Generation
Once the HSSI Support Logic generation is complete, locate the dr_top.sv and dr.mif files in the following folders:
  • <design>/support_logic/dr_top/synth
  • <design>/support_logic/dr_top/sim
Note:

Please note that dr_top is a name you have assigned to the DR group, and it can be changed according to your preference.
