1.2.3. PMA/FEC Direct PHY Multirate Design Example Parameters

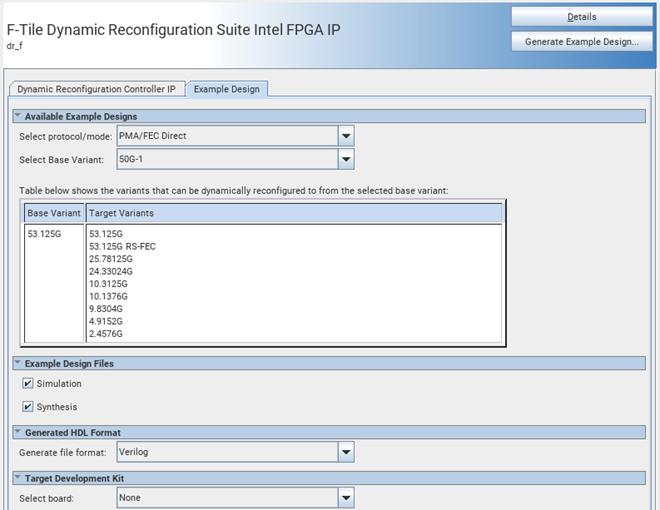

Figure 5. PMA/FEC Direct PHY Multirate Example Design Tab
Table 4.  PMA/FEC Direct PHY Multirate Design Example Parameters
Parameters Value Description
Select Protocol/mode

PMA/FEC Direct PHY

 Select the IP protocol for dynamic reconfiguration.
Select Base Variant

50G-1

400G-8

 Select the configuration of base variant for dynamic reconfiguration.
Example Design Files Simulation

Synthesis

 Simulation option generates the testbench and compilation-only project. Synthesis option generates the hardware design example.
Generated File Format Verilog

VHDL

 Select the HDL files format. If you select VHDL, you must simulate the testbench with a mixed-language simulator.
Target Development Kit None

Intel® Agilex™ 7 I-Series Transceiver-SoC Development Kit

Target development kit option specifies the target device used to generate the project.
