2.2.2. 4G Turbo-V Encoder and Decoder Tests

Intel tests the encoder and decoder by simulating with 5,100 test patterns. Approximately half of these place the rate matcher in bypass mode. Each test uses different values and sizes for E value and K size

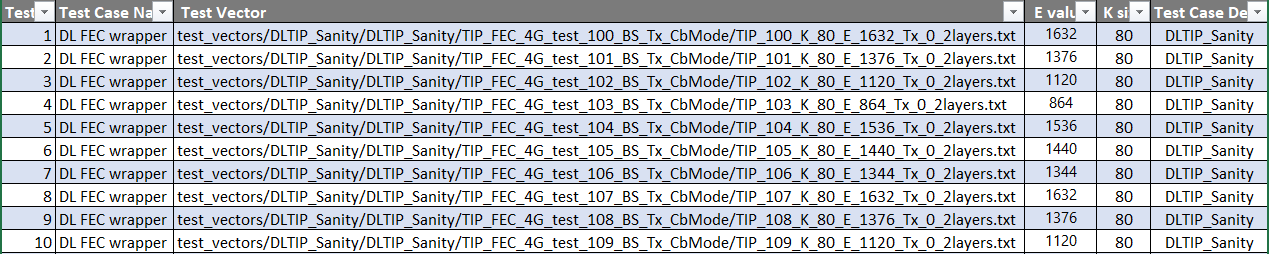

Figure 9. Turbo-V Downlink TestsThe first 10 test cases.

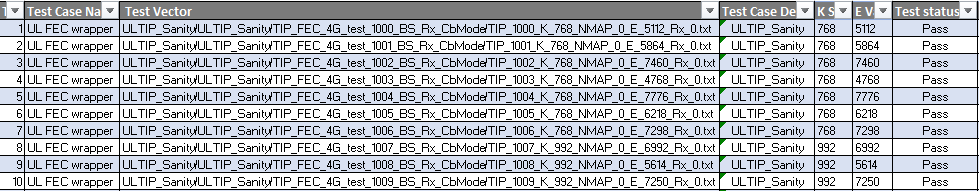

Figure 10. Turbo-V Uplink TestsThe first 10 test cases.
