4.11. Arria® 10 EPE - HPS Worksheet

The HPS worksheet of the Early Power Estimator (EPE) for Arria® 10 applies to Arria® 10 devices with HPS.

To enable parameter entry into the HPS worksheet, first turn ON the HPS System Switch in the HPS worksheet. For Arria® 10 devices, select your peripheral modules in the I/O-IP worksheet. The power of the respective peripheral, except the corresponding I/O power, is shown in this HPS worksheet. To evaluate HPS I/O power, HPS peripherals should be instantiated using the I/O-IP worksheet.

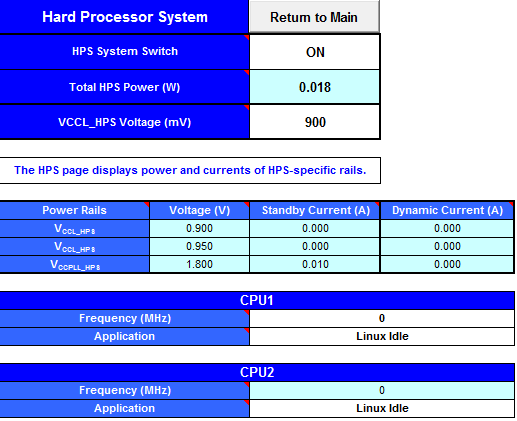

Figure 23. HPS Worksheet of the Early Power Estimator
Table 16.  HPS Worksheet Information
Module Parameters Description
Hard Processor System HPS System Switch Turns the HPS system on and off. This selection affects the PSTATIC power.
Total HPS Power (W) Specifies the total power dissipated by the maximum available active processors (in W).
VCCL_HPS Voltage (mV) Specifies the core HPS voltage (in mV).
CPU1/2 Frequency Specifies the operating frequency of the CPU.
Application

Select a benchmark application representative of the application that will run on this CPU.
