4.13. Intel FPGA PTC - NOC Page

The NOC page of the Intel® FPGA Power and Thermal Calculator (PTC) shows the power information relating to the network-on-chip IP.

To enable parameter entry into the NOC page, first select a device that supports NOC on the Main page or in Device Selection.

Note: Not all Agilex™ 7 devices have the NOC IP. Parameter entry is unavailable if the currently selected device does not have the NOC IP.

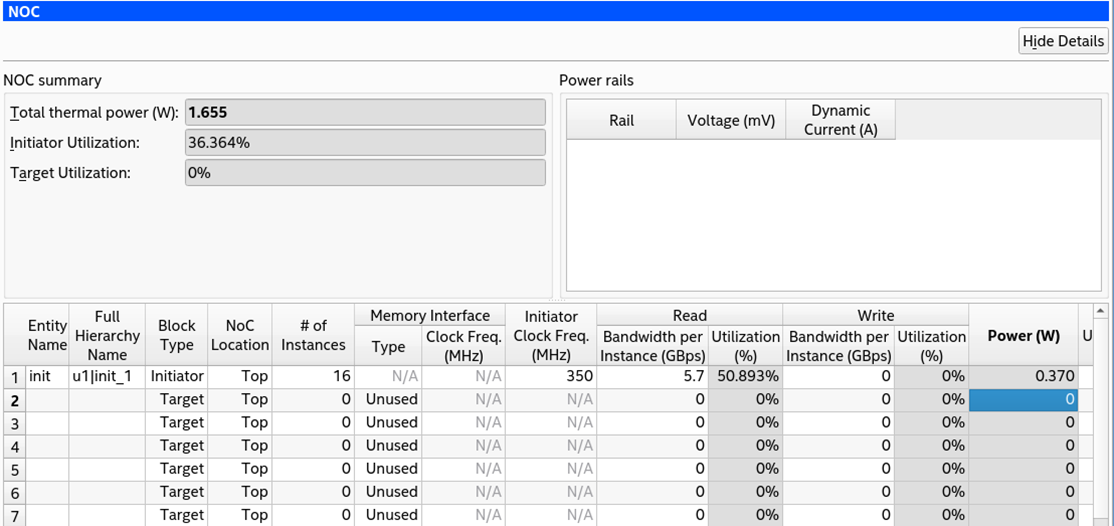

Figure 51. NOC Page of the Intel® FPGA PTC
Table 28.  NOC Page Information
Column Heading Description
Entity Name Specify a name for each entity of the design. This is an optional entry.
Full Hierarchy Name Specify the hierarchical path relevant to this entry. This is an optional entry. When entering levels of hierarchy, the pipe character (|) denotes a level of hierarchy.
Block Type Specify whether the block is of type Target or Initiator.
NoC Location Specify whether the block is located at the Top or Bottom of the device.
# of Instances Specify the number of instances of this element. A single NoC Initiator Intel FPGA IP may contain multiple initiator interfaces. Similarly, a target memory IP such as the High Bandwidth Memory (HBM2E) Interface FPGA IP may contain multiple target interfaces. This page only reflects the power usage of the NoC targets of IP such as the High Bandwidth Memory (HMB2E) Interface FPGA IP. Estimate the power for the remainder of this IP elsewhere within PTC, for example on the HBM page.
Memory Interface Type For target elements only. In the Type column, select between HBM for HBM2e memory or DDR for external memory interfaces implemented in GPIO-B blocks. In the Clock Freq. (MHz) column, enter the clock frequency for these target interfaces
Clock Freq. (MHz)
Initiator Clock Freq. (MHz) For initiator elements only, enter the clock frequency the user interface for these initiators will operate at. If different initiators operate at different frequencies, they will need to be specified on separate rows.
Read Bandwidth per Instance (GBps) For both initiator and target elements. Specify read and write bandwidth in the Bandwidth per Instance (GBps). Initiator or target elements with different bandwidth requirements need to be specified on separate rows. The Utilization (%) displays the bandwidth utilization for each initiator or target. A warning is generated if the read bandwidth utilization and write bandwidth utilization add up to more than 100%.
Utilization (%)
Write Bandwidth per Instance (GBps)
Utilization (%)
Power (W) Reports the power for the total initiators or targets specified on that row.
User Comments Enter any comments. This is an optional entry.
