2.1.1. Programmed Input/Output Design Example Functional Description

Figure 4.  Platform Designer System Contents for F-Tile Avalon® -ST IP for PCI Express PIO Design Example [Gen4 x16 variant]The Platform Designer generates this design for up to Gen4 x16 variants.

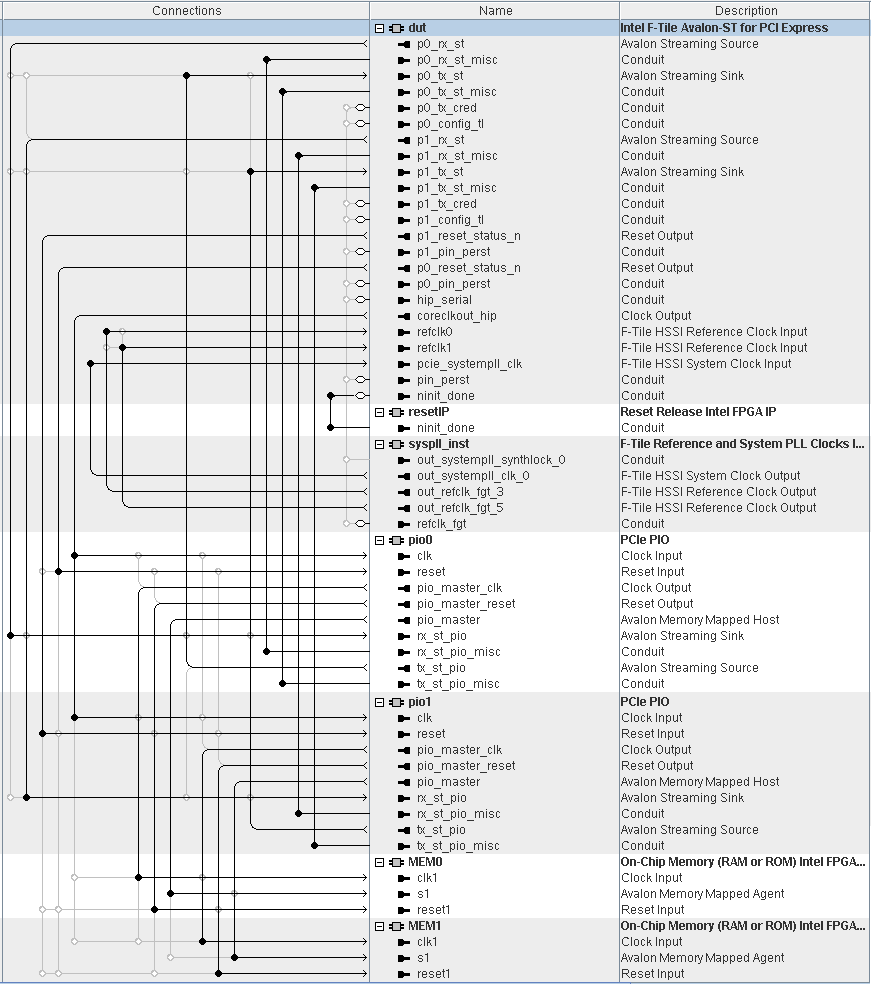

Figure 5.  Platform Designer System Contents for F-Tile Avalon® -ST IP for PCI Express PIO Design Example [Gen4 x8x8 variant]
The Platform Designer generates this design for up to Gen4 x8x8 variants.
Figure 6.  Platform Designer System Contents for F-Tile Avalon® -ST IP for PCI Express PIO Design Example [Gen4 x8 variant]
The Platform Designer generates this design for up to Gen4 x8 variants.

This design example includes the following components


Section Content
F-Tile Avalon-ST IP for PCI Express Hard IP (DUT)
PIO Application (APPS)
On-Chip Memory (MEM)
F-Tile Reference and System PLL Clocks IP
Reset Release IP
