3.4.4. Verifying the Preserved I/Os in the Safety Partition

Check if an I/O is in safety partition from the Input Pins and Output Pins tables of the Plan stage section of the Fitter report from Quartus® Prime Pro Edition Compilation Report. If the type column is FUSA, the I/O is in safety partition. The Partition Name column indicates which partition it is in.

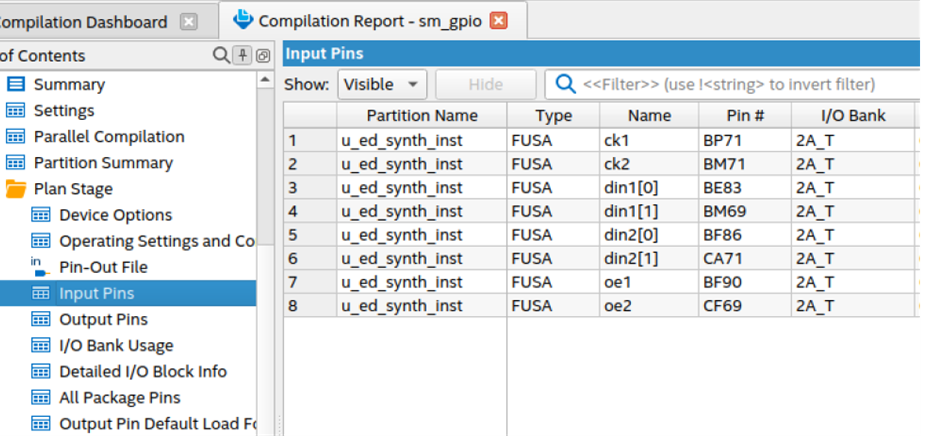

Figure 34. Preserving I/Os Fitter Report
