                            3.2. Fixing the Safety Partitions to Logic Lock Regions
To fix the safety logic into specific areas of the device, define Logic Lock regions.

  - Define Logic Lock regions:
    - The Logic Lock region must be reserved to prevent you placing logic from outside of the region into unused resources within the region
- The Logic Lock region must be of fixed size and origin to ensure location preservation.

- Define route regions. Route region do not need to be reserved.
- Ensure that a Logic Lock region assigned to a safety partition only contains safety logic.

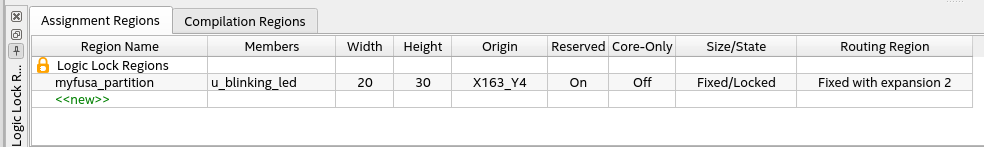

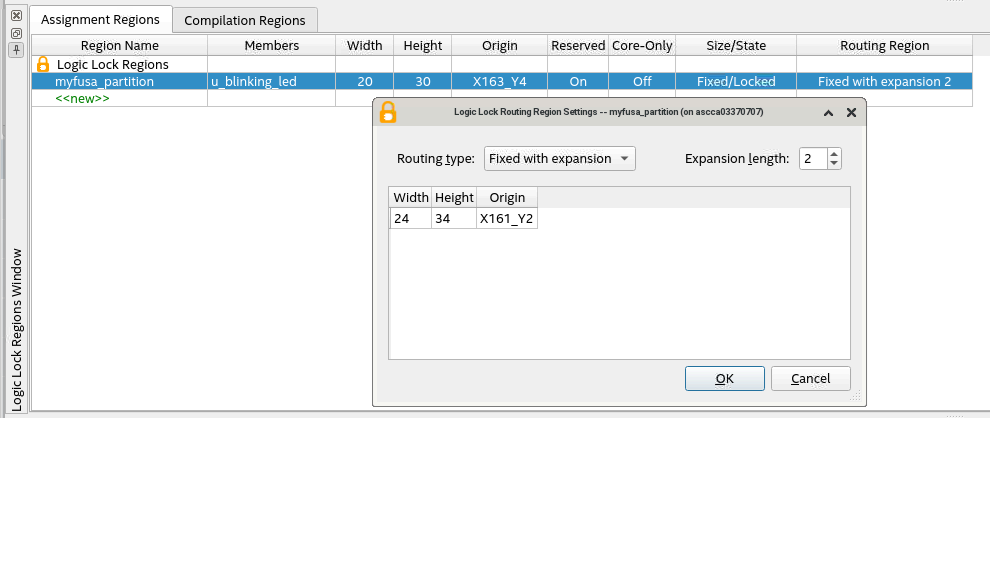

    set_instance_assignment -name REGION_NAME myfusa_partition -to u_blinking_led set_instance_assignment -name PLACE_REGION "X163 Y4 X182 Y33" -to u_blinking_led set_instance_assignment -name RESERVE_PLACE_REGION ON -to u_blinking_led set_instance_assignment -name CORE_ONLY_PLACE_REGION OFF -to u_blinking_led set_instance_assignment -name ROUTE_REGION "X161 Y2 X184 Y35" -to u_blinking_led set_instance_assignment -name RESERVE_ROUTE_REGION OFF -to u_blinking_led Figure 27. Logic Lock Window for Place Region Figure 28. Logic Lock Window for Route Region Figure 28. Logic Lock Window for Route Region
