1.10. Clearing Compilation Results

You can clean the project database if you want to remove prior compilation results for all project revisions or for specific revisions. For example, you must clear previous compilation results before importing a version-compatible database to an existing project.
  1. Click Project > Clean Project.
  2. Select All revisions to clear the databases for all revisions of the current project, or specify a Revision name to clear only the revision’s database you specify.
  3. Turn on Delete Precompiled Components Cache to delete any local precompiled components cache.
  4. Click OK. A message indicates when the database is clean.

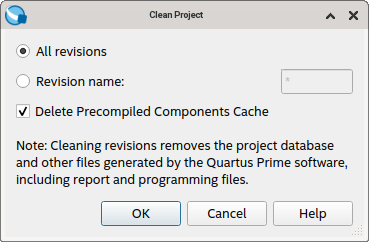

Figure 103. Clean Project Dialog Box Cleans the Project Database
