22.214.171.124. Specify Instance-Specific Constraints in Assignment Editor
Intel® Quartus® Prime Assignment Editor (Assignments > Assignment Editor) provides a spreadsheet-like interface for assigning all instance-specific settings and constraints. To help you explore your design, the Assignment Editor allows you to filter assignments by node name or category.

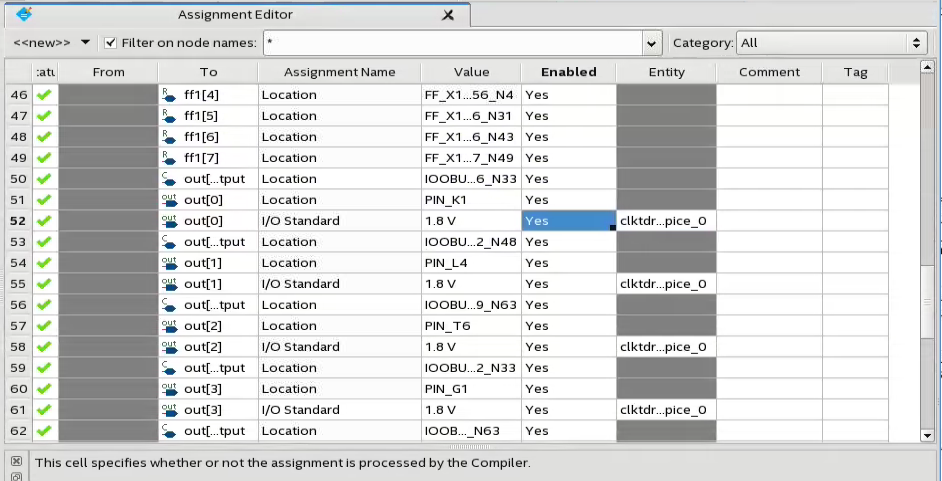

Figure 1. Intel® Quartus® Prime Assignment Editor
Use the Assignment Editor to:
- Add, edit, or delete assignments for selected nodes
- Display information about specific assignments
- Enable or disable individual assignments
- Add comments to an assignment
