4.1.3. Running the Secure Monitor

  1. Power up the board after the SD card is inserted.

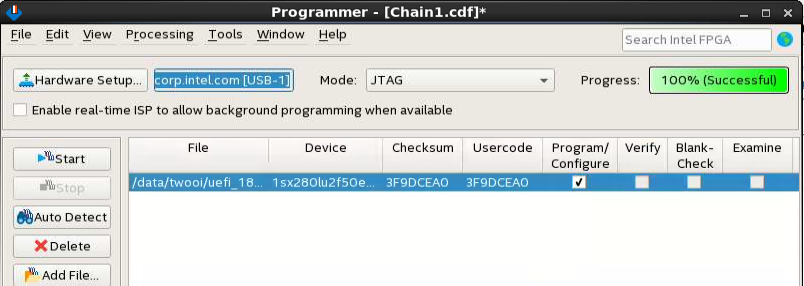

  2. Open Quartus programmer and program the board with the .sof file generated in Generating a .sof File with ATF.
    The board boots up from the ATF and automatically loads UEFI bootloader to boot UEFI shell.
