Intel Stratix 10 SoC UEFI Boot Loader User Guide

ID 683134
Date 6/19/2020
Public

4.2.1. Booting from the UEFI Shell

  1. Boot the board up to the UEFI shell, as described in Running the Secure Monitor.

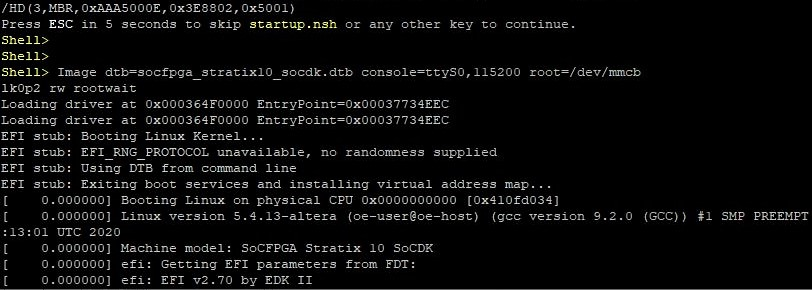

  2. Once the UEFI shell is loaded, enter the following command to boot Linux:
    $ Image dtb=socfpga_stratix10_socdk.dtb console=ttyS0,115200 root=/dev/mmcb

    Note: Make sure Linux image and dtb is stored in the SD card.
