Intel® oneAPI Math Kernel Library Vector Mathematics Performance and Accuracy Data

LinearFrac

Performs linear fraction transformation of vectors a and b with scalar parameters.

Performance:

  Intel® Xeon® Processor E5-2680 Intel® Xeon® Processor E5-2699 v3 Intel® Xeon® Processor E5-2699 v4 Intel® Xeon® Gold 6148 Processor
single HA N/A N/A N/A N/A
LA N/A N/A N/A N/A
EP 1.28 1.55 1.18 1.05
double HA N/A N/A N/A N/A
LA N/A N/A N/A N/A
EP 11.11 4.68 3.58 1.66
Notes:
  1. Units - CPE (Clocks per Element)

  2. Performance was measured on "working" interval (same for both single and double precision: [ 0.000001, 100000.0] for arguments a, b, scalea, and scaleb; [ 0.000001, 100000.0 ] for arguments shifta, and shiftb)

  3. Data - vectors of 1000 elements with random generated numbers.

  4. All data was collected with 64-bit libraries.

Accuracy:

  Intel® Xeon® Processor E5-2680 Intel® Xeon® Processor E5-2699 v3 Intel® Xeon® Processor E5-2699 v4 Intel® Xeon® Gold 6148 Processor
single HA N/A N/A N/A N/A
LA N/A N/A N/A N/A
EP 80.40 80.40 80.40 80.40
double HA N/A N/A N/A N/A
LA N/A N/A N/A N/A
EP 1.67E+05 1.67E+05 1.67E+05 3.41E+03
NOTE:
Units - ULP (Units in the Last Place).

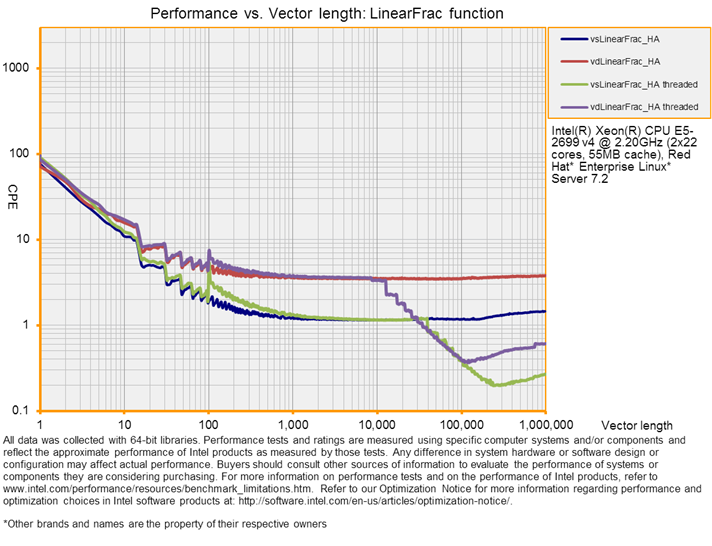

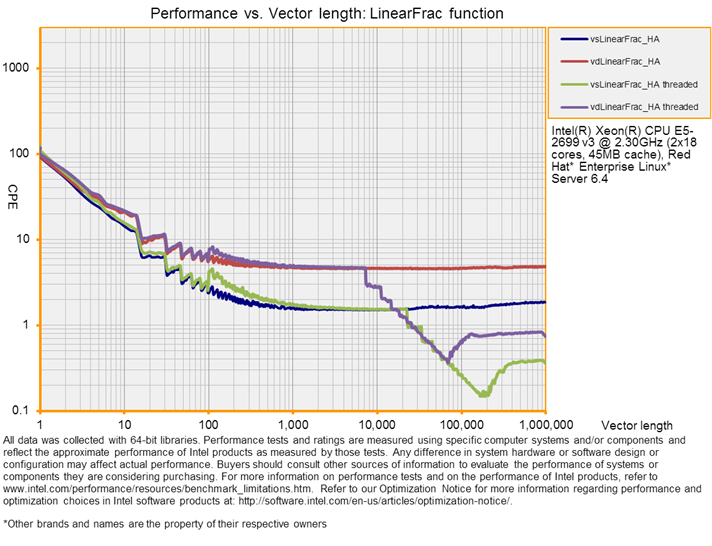

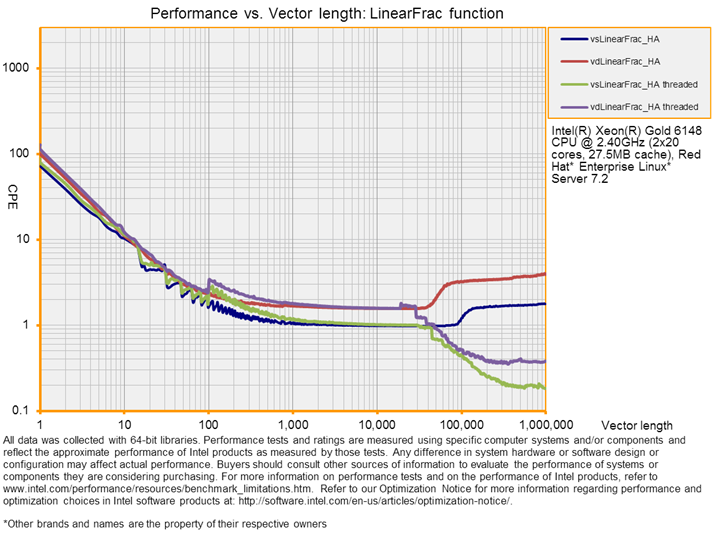

Performance Graphs:

Parent topic: Arithmetic
