Intel® oneAPI Math Kernel Library Vector Mathematics Performance and Accuracy Data

Atan2pi

Computes the four-quadrant inverse tangent of the ratios of the corresponding elementss of two vectors divided by π.

Performance:

  Intel® Xeon® Processor E5-2680 Intel® Xeon® Processor E5-2699 v3 Intel® Xeon® Processor E5-2699 v4 Intel® Xeon® Gold 6148 Processor
single HA 10.57 10.93 8.82 5.58
LA 6.14 3.57 3.33 2.05
EP 4.07 2.80 2.50 1.31
double HA 24.45 19.10 15.81 9.90
LA 16.52 13.88 11.88 7.67
EP 11.66 10.81 9.39 4.89
Notes:
  1. Units - CPE (Clocks per Element)

  2. Performance was measured on "working" interval (double precision: [ -10000.0, 10000.0 ] × [ -18000.0, 18000.0 ]; single precision: [ -10000.0, 10000.0 ] × [ -18000.0, 18000.0 ])

  3. Data - vectors of 1000 elements with random generated numbers.

  4. All data was collected with 64-bit libraries.

Accuracy:

  Intel® Xeon® Processor E5-2680 Intel® Xeon® Processor E5-2699 v3 Intel® Xeon® Processor E5-2699 v4 Intel® Xeon® Gold 6148 Processor
single HA 0.83 0.82 0.82 0.82
LA 2.61 2.88 2.88 2.58
EP 3.77E+03 3.77E+03 3.77E+03 3.77E+03
double HA 0.85 0.85 0.85 0.92
LA 3.37 3.37 3.37 3.60
EP 2.19E+07 2.19E+07 2.19E+07 2.16E+07
NOTE:
Units - ULP (Units in the Last Place).

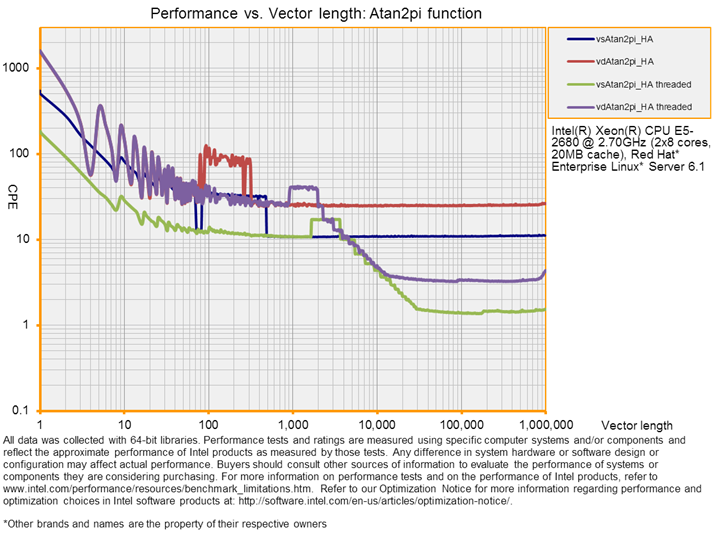

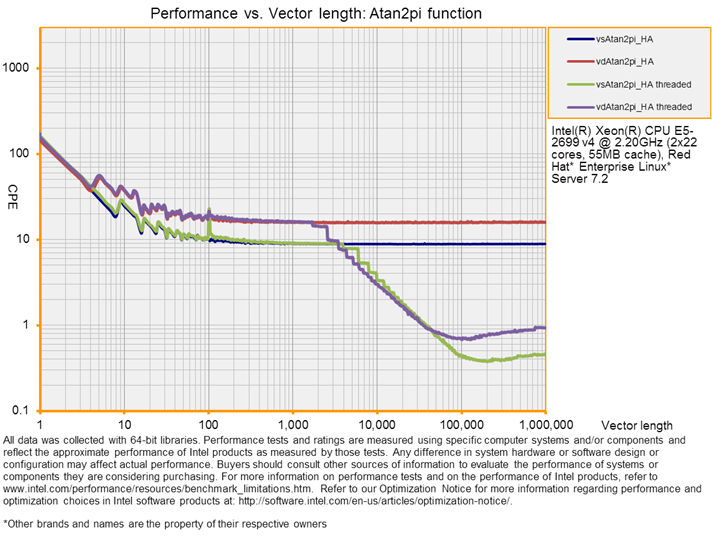

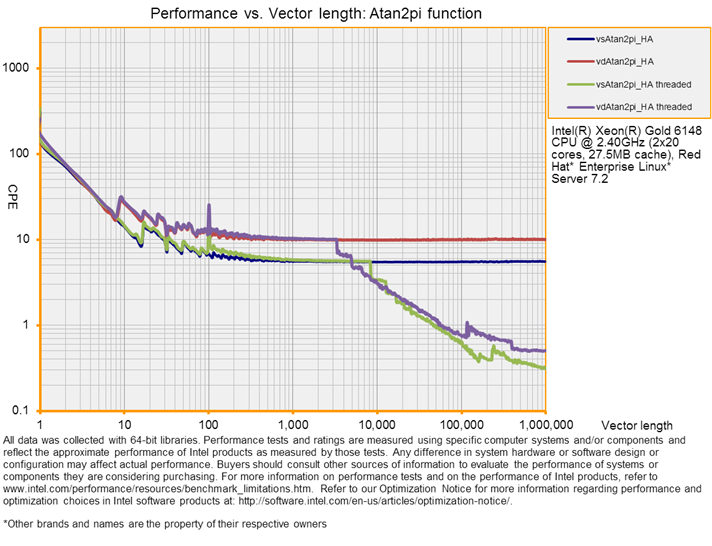

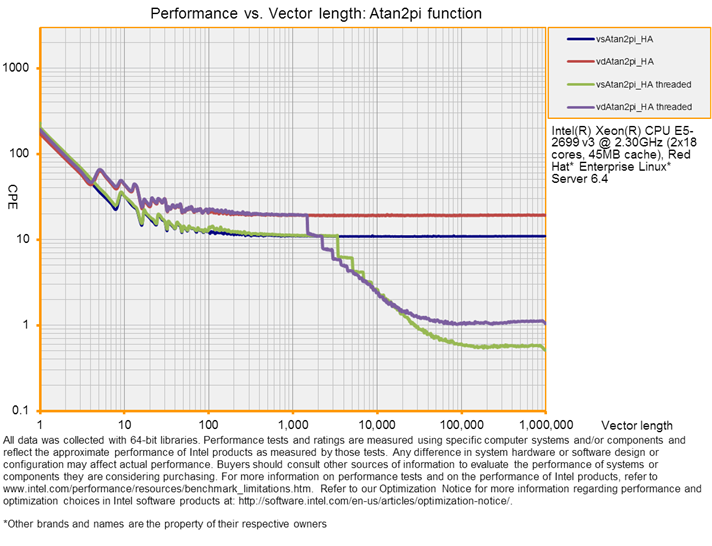

Performance Graphs:
