Analyze Platform Performance

Understand the platform-level metrics provided by the Input and Output analysis of Intel® VTune™ Profiler.

The Input and Output analysis provides platform-level metrics designed to:

  • Analyze platform I/O traffic on per-I/O-device basis, whether the I/O device is an external PCIe device or an integrated accelerator.
  • Analyze efficiency of Intel® Data Direct I/O technology (Intel® DDIO) utilization.
  • Analyze Intel® Virtualization Technology for Directed I/O (Intel® VT-d) utilization.
  • Monitor DRAM and persistent memory bandwidth consumption.
  • Identify I/O performance issues potentially caused by inefficient remote socket accesses.
  • Identify sources of outbound I/O (MMIO) traffic.

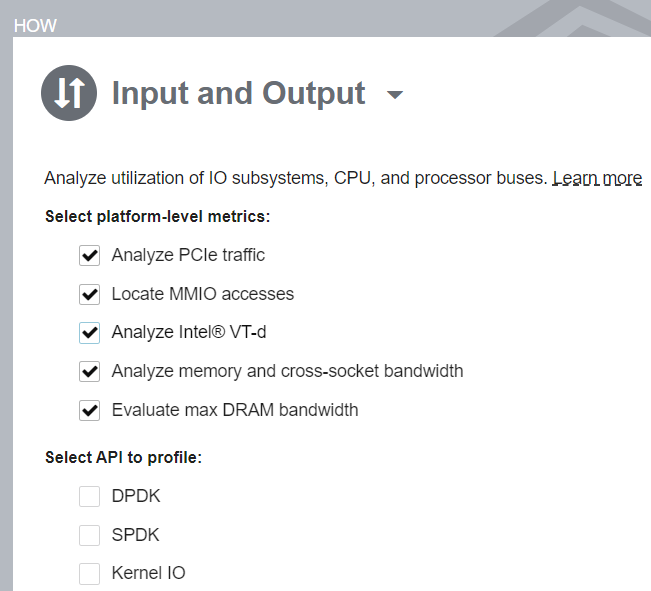

To get this information, start the analysis with these options enabled:

Analyze Topology and Hardware Resource Utilization

Once the data collection finishes, VTune Profiler opens the default Summary window.

Start your investigation with the Platform Diagram section of the Summary window. The Platform Diagram presents system topology and utilization metrics for I/O and Intel® UPI links, DRAM, persistent memory, and physical cores.

Here is an example of a Platform Diagram for a two-socket server with an active network interface card (NIC) on socket 1 and active Intel® QuickData Technology (CBDMA) on socket 0:

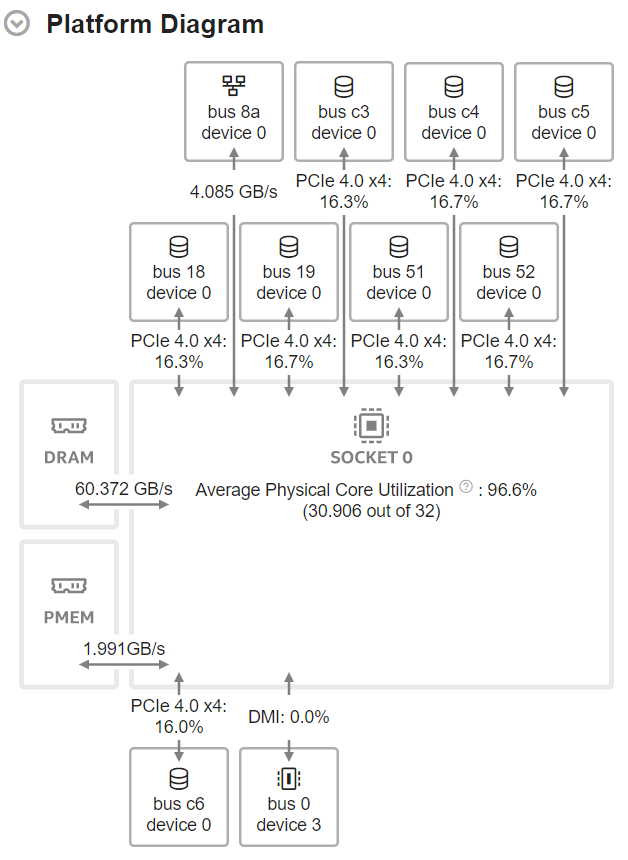

This is a Platform Diagram for a single-socket server with 8 active NVMe SSDs, network interface card, and persistent memory:


You can observe the Platform Diagram in server platforms based on Intel® microarchitectures code named Skylake (with up to four sockets) and Sapphire Rapids.

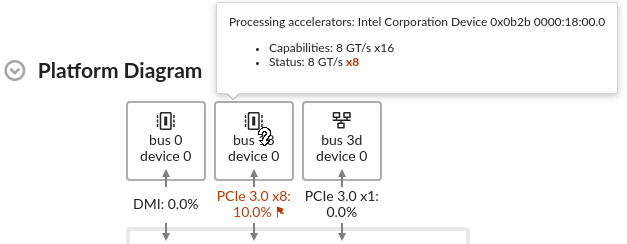

I/O devices are shown with short names that indicate the PCIe bus and device numbers. Full device name, link capabilities, and status are shown in the device tooltip. Hover over the device image to see detailed device information.

The Platform Diagram highlights device status issues that may be a reason of limited throughput. A common issue is that the configured link speed/width does not match the maximum speed/width of the device.

When device capabilities are known and the maximum physical bandwidth can be calculated, the device link is attributed with the Effective Link Utilization metric that represents the ratio of bandwidth consumed on data transfers to the available physical bandwidth. This metric does not account for protocol overhead (TLP headers, DLLPs, physical encoding) and reflects link utilization in terms of payloads. Thus, it cannot reach 100%. However, this metric can give a clue on how far from saturation the link is. Maximum theoretical bandwidth is calculated for device link capabilities as shown in the device tooltip.

The Platform Diagram shows the Average DRAM Utilization when the Evaluate max DRAM bandwidth checkbox is selected in the analysis configuration. Otherwise, it shows the average DRAM bandwidth.

If the system is equipped with persistent memory, the Platform Diagram shows the Average Persistent Memory Bandwidth.

The Average UPI Utilization metric reveals UPI utilization in terms of transmit. The Platform Diagram shows a single cross-socket connection, regardless of how many UPI links connect a pair of packages. If there is more than one link, the maximum value is shown.

The Average Physical Core Utilization metric, displayed on top of each socket, indicates the utilization of physical cores by computations of the application being analyzed.

Once you examine topology and utilization, drill down into the details to investigate platform performance.

High Bandwidth Memory Data in Platform Diagram

For server platforms based on Intel® microarchitecture code named Sapphire Rapids, the Platform Diagram also includes information about High Bandwidth Memory (HBM). Use this information to distinguish from DRAM-specific utilization in the diagram.

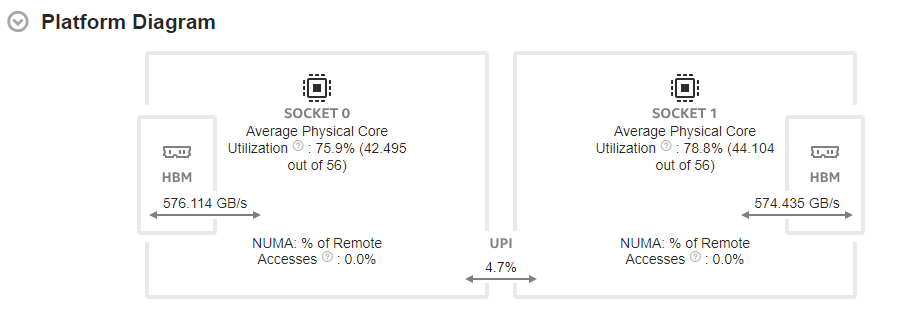

For example, this diagram shows information about HBM mode utilization, where the system has no DRAM.

Here is an example of the Platform Diagram data in a system that has both HBM and DRAM.

Analyze Platform I/O Bandwidth

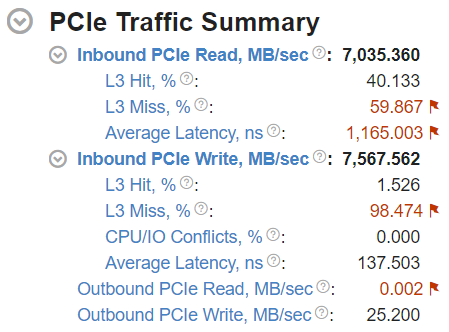

To explore I/O traffic processing on the platform, start your investigation with the PCIe Traffic Summary section of the Summary window. These top-level metrics reflect the total Inbound and Outbound I/O traffic:

  • Inbound PCIe Bandwidth is induced by I/O devices—whether external PCIe devices and/or integrated accelerators—that write to and read from the system memory. These reads and writes are processed by the platform through the Intel® Data Direct I/O (Intel® DDIO) feature.

    • Inbound PCIe Read — the I/O device reads from the platform memory.

    • Inbound PCIe Write — the I/O device writes to the platform memory.

  • Outbound PCIe Bandwidth is induced by core transactions targeting the memory or registers of the I/O device. Typically, the core accesses the device memory through the Memory-Mapped I/O (MMIO) address space.

    • Outbound PCIe Read — the core reads from the registers of the device.

    • Outbound PCIe Write — the core writes to the registers of the device.

The granularity of Inbound and Outbound PCIe Bandwidth metrics depends on CPU model, collector used, and user privileges. For details, see the Platform-Level Metrics table.

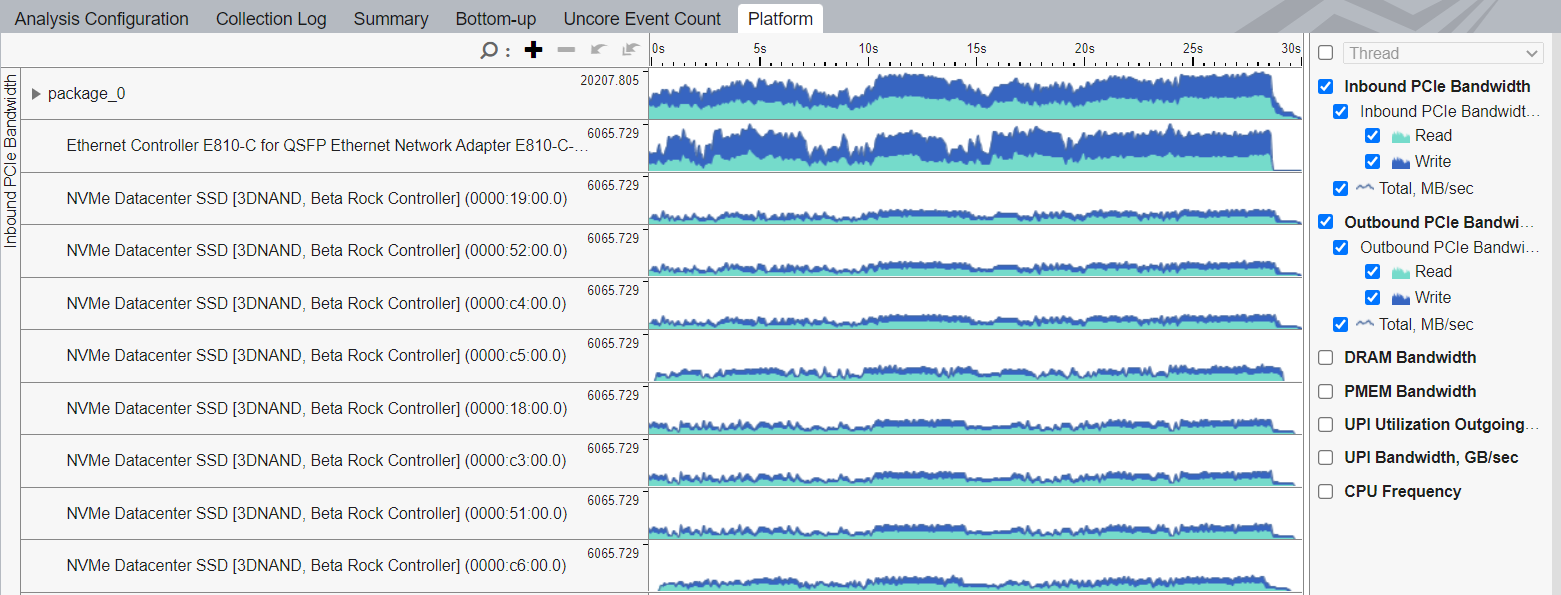

You can analyze the Inbound and Outbound PCIe Bandwidth over time on a per-device basis using the timeline in the Bottom-up or the Platform tabs:

Analyze Efficiency of Intel® Data Direct I/O Utilization

To understand whether your application utilizes Intel® DDIO efficiently, explore the second level metrics in the PCIe Traffic Summary section.

The L3 Hit/Miss Ratios for Inbound I/O requests reflect the proportions of requests made by I/O devices to the system memory that hit/miss the L3 cache. For a detailed explanation of Intel® DDIO utilization efficiency, see the Effective Utilization of Intel® Data Direct I/O Technology Cookbook recipe.


L3 Hit/Miss metrics are available for Intel® Xeon® processors code named Haswell and newer.

The Average Latency metric of the Inbound PCIe read/write groups shows an average amount of time the platform spends on processing inbound read/write requests for a single cache line.

The CPU/IO conflicts ratio shows a portion of Inbound I/O write requests that experienced contention for a cache line between the IO controller and some other agent on the CPU, which can be a core or another IO controller. These conflicts are caused by the simultaneous access to the same cache line. Under certain conditions, such access may cause the IO controller to lose ownership of this cache line. This forces the IO controller to reacquire the ownership of this cache line. Such issues can occur in applications that use the polling communication model, resulting in suboptimal throughput and latency. To resolve this, consider tuning the Snoop Response Hold Off option of the Integrated IO configuration of UEFI/BIOS (option name may vary depending on platform manufacturer).


Average Latency for inbound I/O reads/writes and CPU/IO Conflicts metrics are available on Intel® Xeon® processors code named Skylake and newer.

The granularity of DDIO efficiency metrics—second-level metrics for Inbound I/O bandwidth—depends on CPU model, collector used, and user privileges. For details, see the Platform-Level Metrics table.

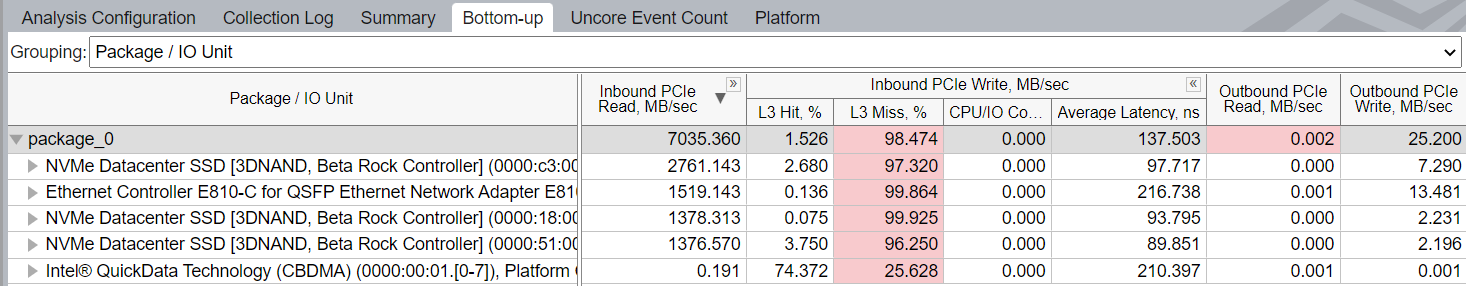

You can get a per-device breakdown for Inbound and Outbound Traffic, Inbound request L3 hits and misses, Average latencies, and CPU/IO Conflicts using the Bottom-up pane with the Package / M2PCIe or Package / IO Unitgrouping:

Analyze Utilization of Intel® Virtualization Technology for Directed I/O

To understand how your workload utilizes the Intel® Virtualization Technology for Directed I/O (Intel VT-d), explore Intel® VT-d section of the result Summary tab. Intel VT-d enables addresses remapping for Inbound I/O requests.


Intel VT-d metrics are available starting with server platforms based on Intel® microarchitecture code named Ice Lake.

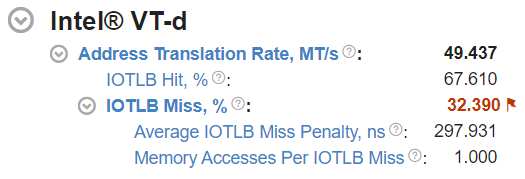

The top-level metric shows the average total Address Translation Rate.

The IOTLB (I/O Translation Lookaside Buffer) is an address translation cache in the remapping hardware unit that caches effective translations from virtual addresses, used by devices, to host physical addresses. IOTLB lookups happen on address translation requests. The IOTLB Hit and IOTLB Miss metrics reflect the ratios of address translation requests hitting and missing the IOTLB.

The next-level metrics for IOTLB misses are:

  • Average IOTLB Miss Penalty, ns — average amount of time spent on handling an IOTLB miss. Includes looking up the context cache, intermediate page table caches and page table reads (page walks) on a miss, which turn into memory read requests.
  • Memory Accesses Per IOTLB Miss — average number of memory read requests (page walks) per IOTLB miss.

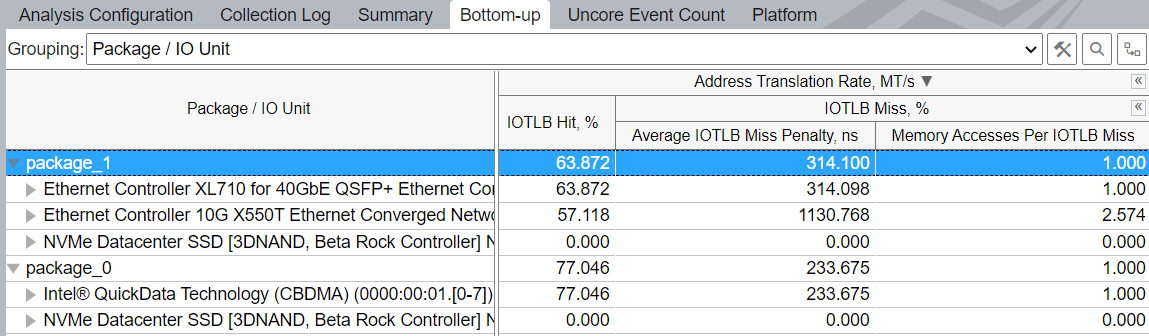

The granularity of Intel VT-d metrics depends on CPU model, collector used, and user privileges. For details, see the Platform-Level Metrics table. When prerequisites are met, Intel VT-d metrics can be viewed per sets of I/O devices—PCIe devices and/or integrated accelerators. Each set includes all devices handled by the single I/O controller, which commonly serves 16 PCIe lanes. Switch to the Bottom-up window and use Package / IO Unit grouping:

Analyze MMIO Access

Outbound I/O traffic visible in the PCIe Traffic Summary section of the Summary tab is caused by cores writing to and reading from memory/registers of I/O devices.

Typically, cores access I/O device memory through the Memory-Mapped I/O (MMIO) address space. Each load or store operation targeting the MMIO address space that an I/O device is mapped to causes outbound I/O read or write transactions respectively. When performed through the usual load and store instructions, such memory accesses are quite expensive, since they are affected by the I/O device access latency. Therefore, such accesses should be minimized to achieve high performance. The latest Intel architectures incorporate direct store instructions (MOVDIR*) which may enable high rate for MMIO writes, usually used for job submission or "doorbell rings".

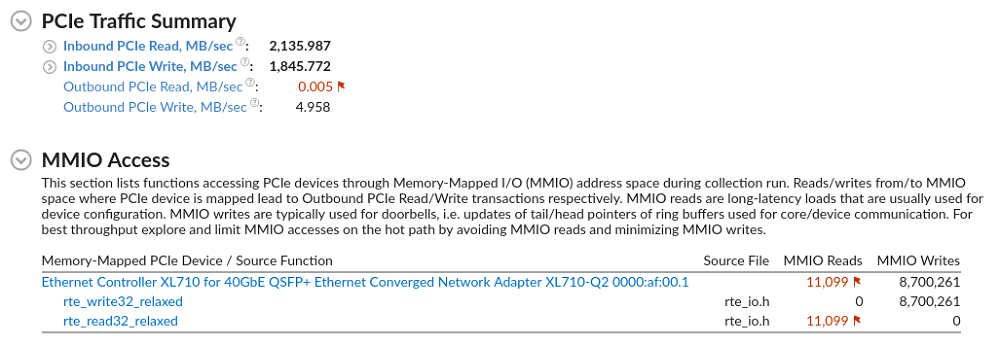

Enable the Locate MMIO accesses option during analysis configuration to detect the sources of outbound traffic. Use the MMIO Access section to locate functions performing MMIO Reads and MMIO Writes that target specific PCIe devices.

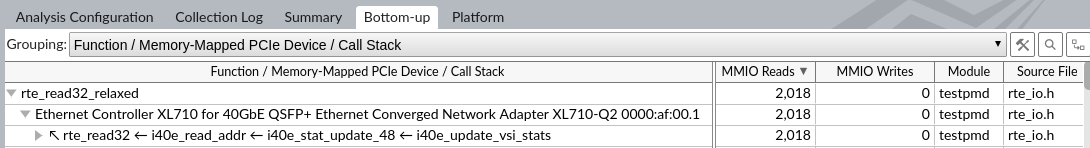

Use the Bottom-up pane to locate sources of memory-mapped PCIe device accesses. Explore the call stacks and drill down to source and assembly view:

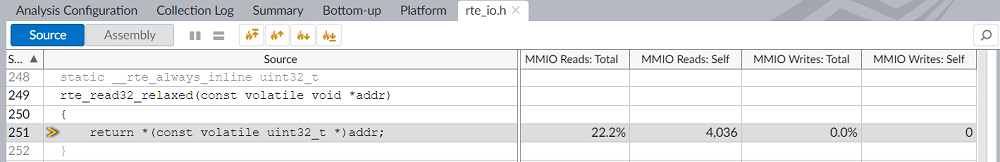

Double click on the function name to drive into source code or assembly view to locate the code responsible for MMIO reads and writes at source line level:


MMIO access data is collected when the Locate MMIO accesses check box is selected. However, there are some limitations:

  • This feature is only available starting with server platforms based on the Intel® microarchitecture code name Skylake.

  • Only Attach to Process and Launch Application collection modes are supported. When running in the Profile System mode, this option only reveals functions performing reads from uncacheable memory.

Analyze Memory, Persistent Memory, and Cross-Socket Bandwidth

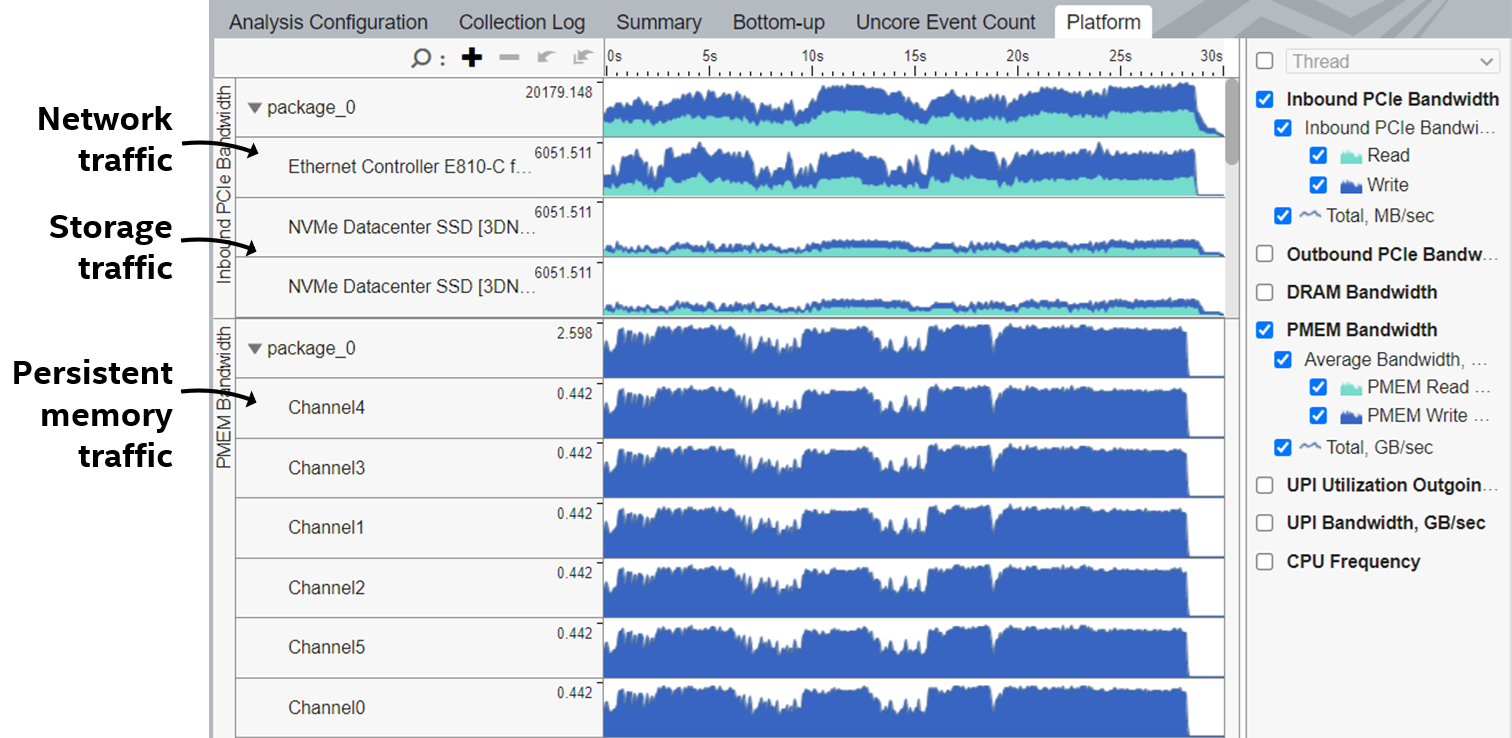

Use the Platform tab to correlate I/O traffic with DRAM, PMEM (persistent memory) and cross-socket interconnect bandwidth consumption:

VTune Profiler provides per-channel breakdown for DRAM and PMEM bandwidth:

Two metrics are available for Intel® UPI traffic:

  • UPI Utilization Outgoing – ratio metric that shows UPI utilization in terms of transmit.
  • UPI Bandwidth – shows detailed bandwidth information with breakdown by data/non-data.

You can get a breakdown of UPI metrics by UPI links. See the specifications of your processor to determine the number of UPI links that are enabled on each socket of your processor.

UPI link names reveal the topology of your system by showing which sockets and UPI controllers they are connected to.

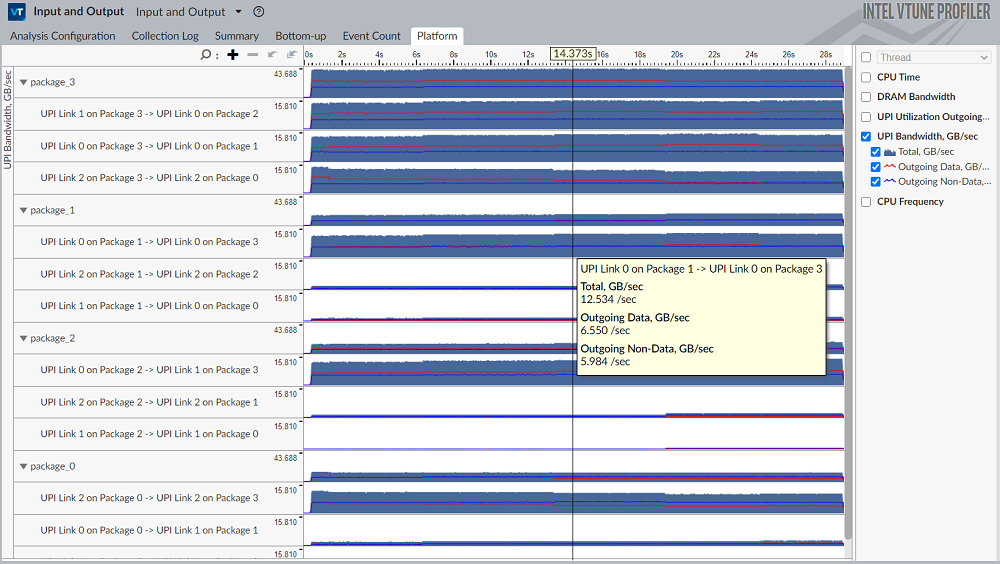

Below is an example of a result collected on a four-socket server powered by Intel® processors with microarchitecture code named Skylake. The data reveals significant UPI traffic imbalance with bandwidth being much higher on links connected to socket 3:
