3.1.3. Integrated Transceiver Without Dual Simplex Block Diagram

For Agilex™ 5 HDMI RX-TX Retransmit with integrated Transceiver without dual simplex (DS), HDMI RX and HDMI TX are running on separate transceiver channels. When separate transceiver channels are used like this, the dual simplex group is not needed. Use this design variant option with any of the following hardware:

  • Daughter card with separate channel for RX and TX

You must do your own pin assignments for the design that is generated using this option.

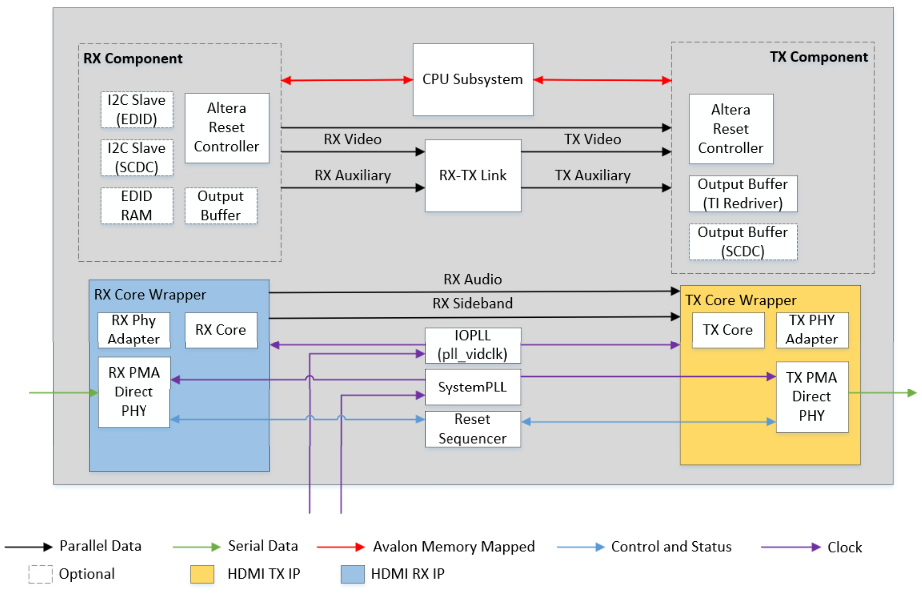

Figure 9. HDMI RX-TX Retransmit Block Diagram (without DS)
