3.1.2. Integrated Transceiver With Dual Simplex Block Diagram

For Agilex™ 5 HDMI RX-TX Retransmit with integrated Transceiver with dual simplex (DS), the Transceiver IP instantiated inside the HDMI IP. The HDMI IP (RX and TX) are wrapped into a Dual Simplex Group. Both RX and TX transceiver are placed at the same channel.

The RX and TX simplex IPs are merged into a dual simplex group with the Assignment Editor. For more information about implementing dual simplex interfaces, refer to "Implementing Dual Simplex Interfaces" in the GTS Transceiver Dual Simplex Interfaces User Guide .

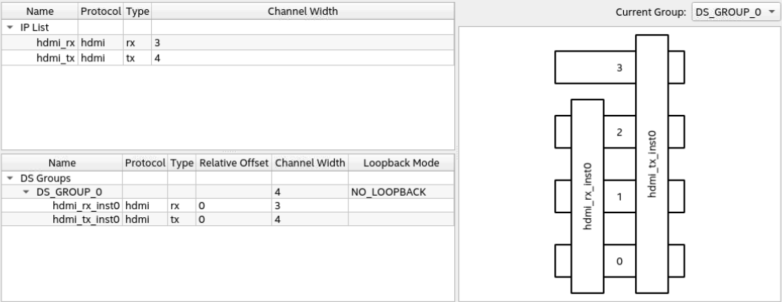

Figure 7. Dual Simplex Assignment Editor
Figure 8. HDMI RX-TX Retransmit Block Diagram (with Dual Simplex)
