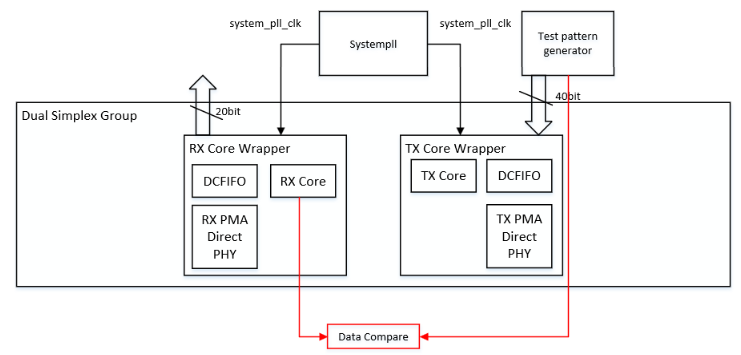

4.2. Integrated Transceiver (With Dual Simplex) Simulation Testbench

The HDMI testbench simulates a serial loopback design from a TX instance to an RX instance. Internal video pattern generator, audio sample generator, sideband data generator, and auxiliary data generator modules drive the HDMI TX instance and the serial output from the TX instance connects to the RX instance in the testbench.

The parallel data output from the TX is serialized by the TX Transceiver and looped back to the RX Transceiver. Both HDMI TX and RX instance are wrapped into a Dual Simplex group.
