4.5.1. Test Procedure

Follow these steps to test the design examples in hardware:

  1. Click Tools > System Debugging Tools > System Console or run command: system-console &.
  2. Navigate to the hardware design directory: cd <design_example>/LL10G_1G_2_5G_PHY_1588v2/hwtesting/system_console.
  3. Run the following command in the System Console:
    1. source dr_test.tcl
    Note: You must connect the external QSFP28 loopback module to the desired QSFP1 port before running the test.
  4. The following sample output illustrate a successful hardware test run:

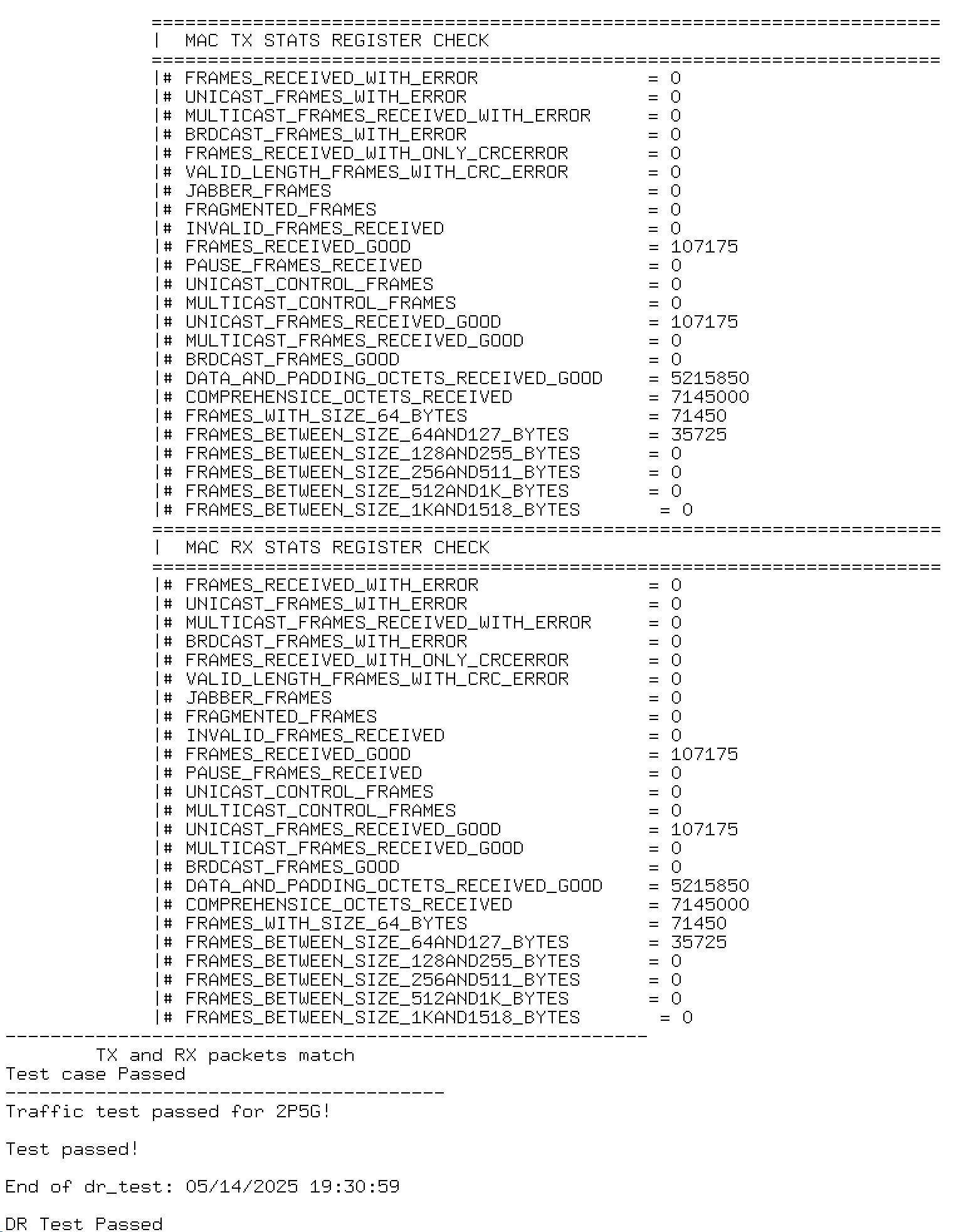

    Figure 25. Sample Test Output
Note: The test starts with traffic test on 2.5G speed, switches to 1G, and then switches back to 2.5G.
