2.4.2. Transmitter Return Loss

The following figure details the minimum permitted MR transmitter differential return loss (RL) for 29 Gbaud/s. Notice that RLmin is -6 dB at 14.5 GHz. Using the equation for differential return loss limit below, with f = 14.5, fb = 29, the result is RLmin = 6.09 dB. This is roughly the same as the RL for an NRZ system, which means that the transmitter operates roughly the same with existing legacy backplanes.

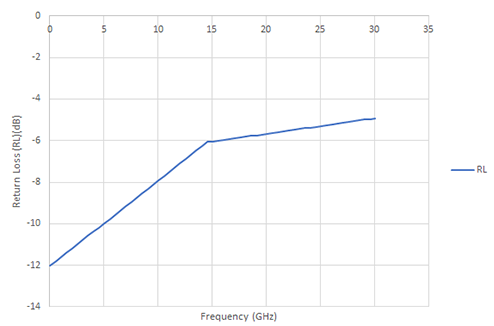

Figure 13. Transmitter Differential Return Loss Limit for 29 Gbaud/s (58 Gbps)
Equation 4. Differential Return Loss Limit

From the figure, RLmin is -3 dB at 14.5 GHz. Using the equation for common mode return loss limit below, with f = 14.5, fb = 29, results in RLmin = 3.09 dB.

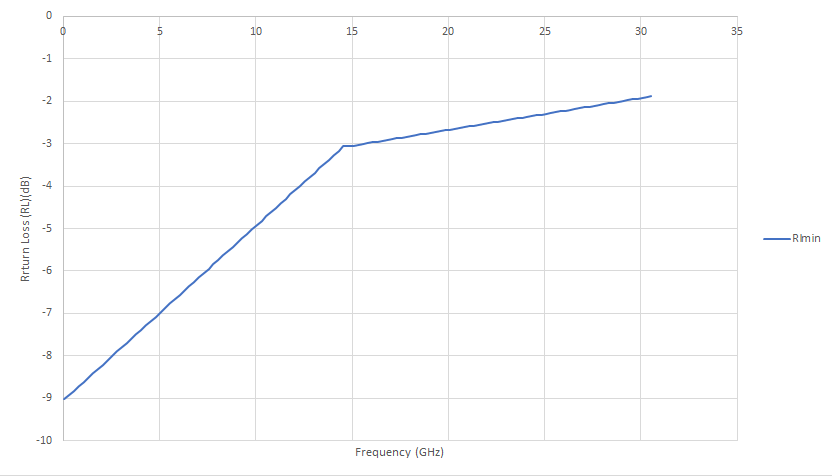

Figure 14. Transmitter Common Mode Return Loss Limit for 29 Gbaud/s (58 Gbps)

RLmin is -3 dB at 14.5 GHz.

RLmin = 3.09 dB using Equation 5 where f = 14.5 and fb = 29.

Equation 5. Common Mode Return Loss Limit
