5.2.1. Channel Characteristics

The channel’s insertion loss (IL) is ~18.79 dB at 14.0 GHz and ~31 dB at 25 GHz. The insertion loss deviation (ILD) characteristics show that it has narrow (<1.8 dB) spread up to ~20 GHz.

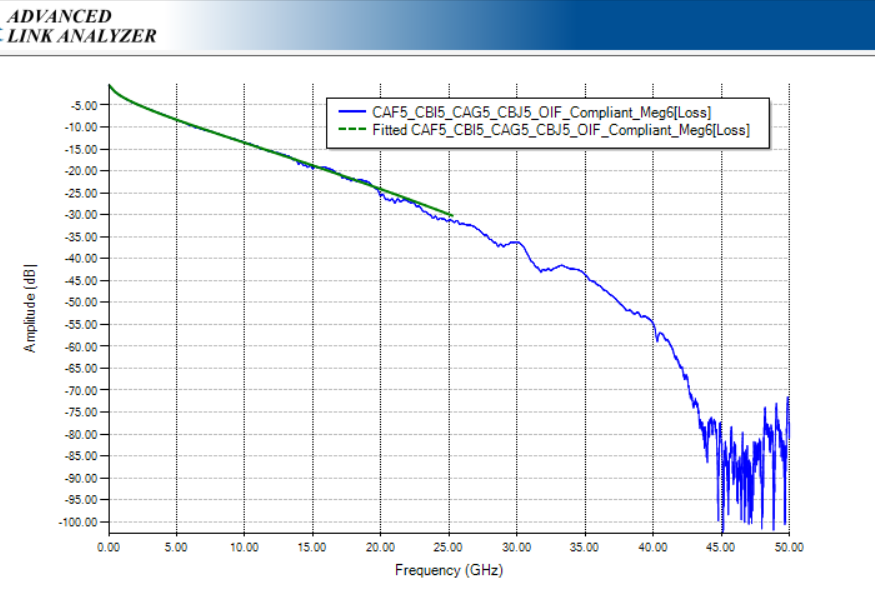

Figure 35. OIF_Compliant Channel Characteristics: Insertion Loss (IL)
Figure 36. OIF_Compliant Channel Characteristics: Insertion Loss Deviation (ILD)

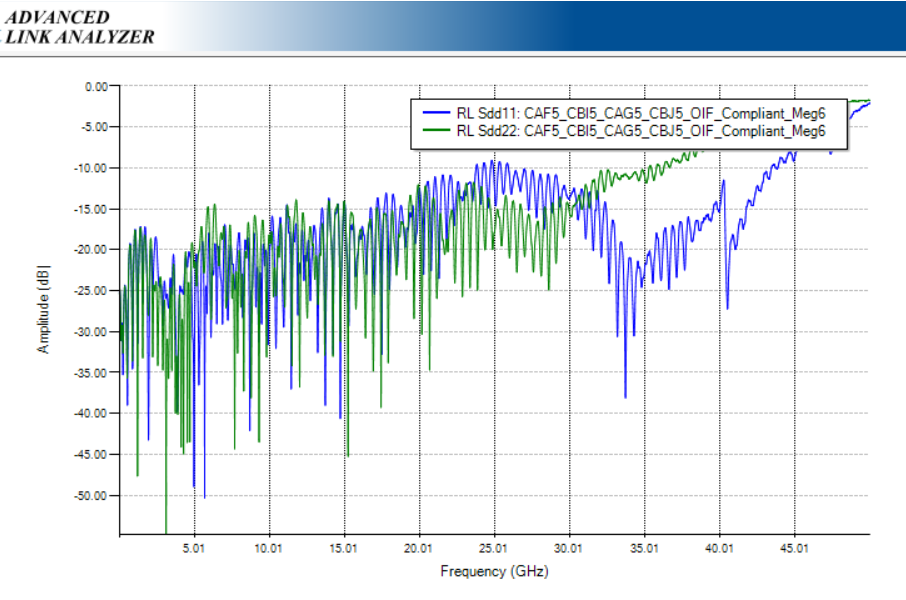

Figure 37. OIF_Compliant Channel Characteristics: Return Loss (RL)
