With the Show Delays feature, you can view timing delays for paths appearing in Timing Analyzer reports. To access this feature, click View > Show Delays in the main menu. Alternatively click the Show Delays icon in the Chip Planner toolbar. To see the partial delays on the selected path, click the “+” sign next to the path delay displayed in the Locate History window.

For example, you can view the delay between two logic resources or between a logic resource and a routing resource.

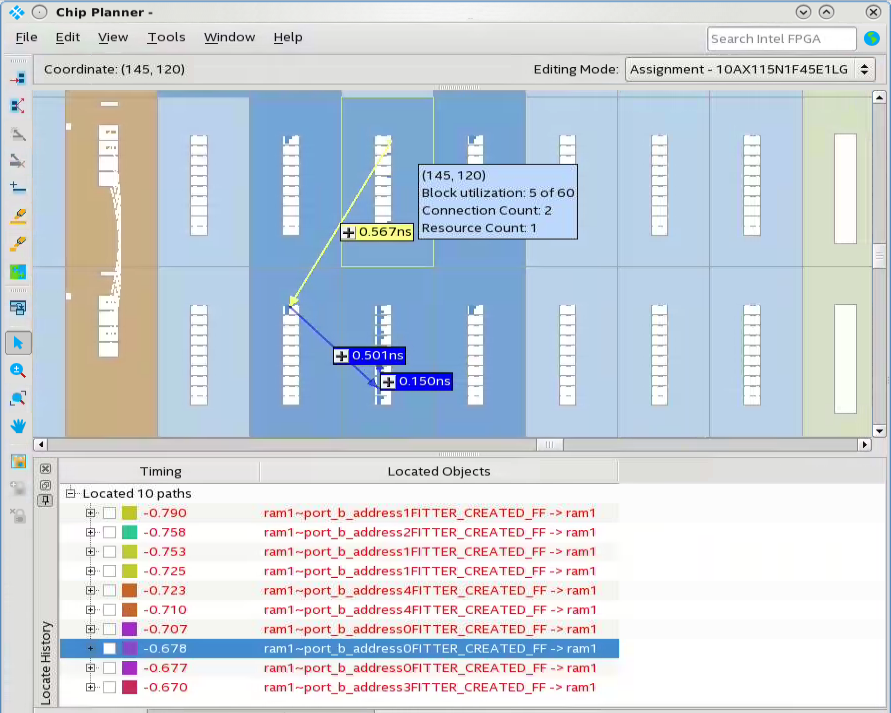

Figure 71. Show Delays Associated in a Timing Analyzer Path
