4. Mechanical Information

Intel® FPGA PAC N3000-N Dimensions

Note: All dimensions are in mm.
  • Standard height, half length PCIe* card
  • Maximum component height: 14.47 mm
  • PCIe* x16 mechanical
  • Tested to withstand Non-Operational Square Wave Shock Test of 32 G
  • Card dimension tolerance: +/- 0.13 mm
  • QSFP connector protrusion: 5.2 +/- 0.50 mm
Figure 5.  Intel® FPGA PAC N3000-N Dimensions

Intel® FPGA PAC N3000-N Port and LED Information

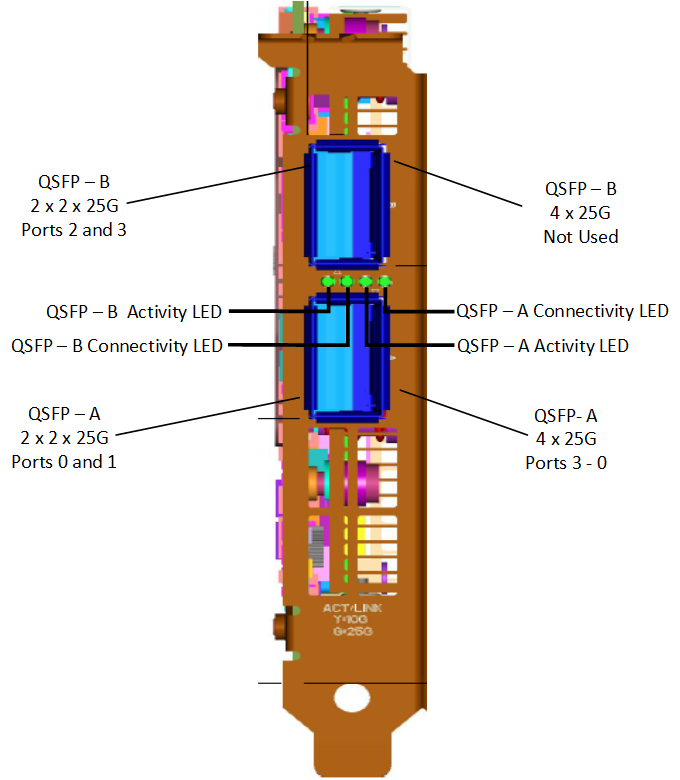

Figure 6.  Intel® FPGA PAC N3000-N Port Information
Table 5.  OPN Information
OPN Net Weight (Kg) Gross Weight (Kg) Description
BD-NVV-N3000-3ES 0.450 1.28 Engineering Sample 25 GbE, thermally enhanced
BD-NVV-N3000-3 0.450 1.28 Production 25 GbE, thermally enhanced

Intel® FPGA PAC N3000-N LEDs

Table 6.  LED Behavior
LED Type Description
Connectivity LED Green means link is up with link speed of 25 G.
Off means link is down.
Activity LED Green blinking at 1 Hz means link activity present.
Off means link is down or no activity.
All LEDs blinking yellow Issue with power.

Check card insertion in PCIe* card slot, PCIe* edge connector 12 V and auxiliary 12 V power.
