4.1.1. Updating the FIM and BMC using the fpgaotsu
To update your FIM and BMC, complete the following steps. All files required for the update are located at /usr/share/opae/d5005/one-time-update/.
- Run the FPGA one-time secure update command: fpgaotsu

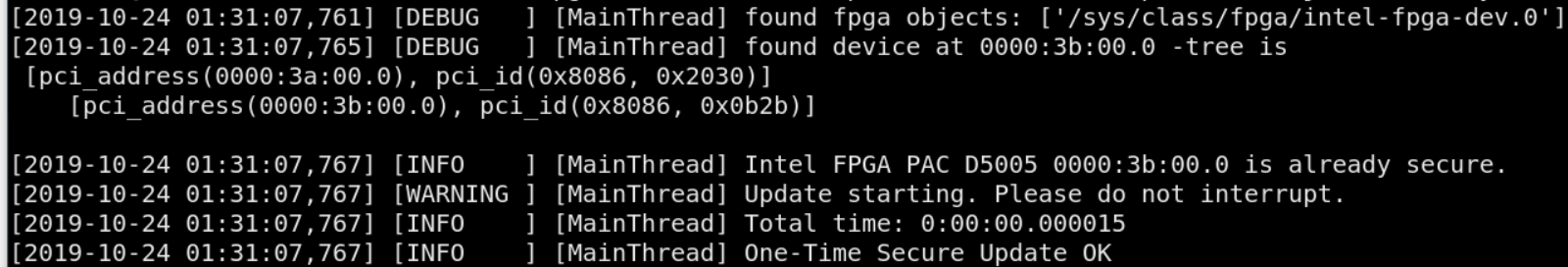

sudo fpgaotsu /usr/share/opae/d5005/one-time-update/otsu.jsonNote: This command can take up to 40 minutes to complete. Stop any service accessing the FPGA such as pacd before performing the update.Figure 3. Sample OutputIf a power failure or power cycle occurs during the upgrade process, perform these operations based on the state of the card:
BMC Firmware and Intel® MAX® 10 Version Action to Recover 1.x.x (Non-secure state) Repeat step 1 again. 2.x.x (Partial secure state)
sudo super-rsu /usr/share/opae/d5005/super-rsu/rsu-d5005.json
- Check exit code of command: echo $?
- non-zero value=Failed update
- Power cycle the server for the updates to take effect.
Use the following command to confirm a successful completion of the update:
sudo fpgaotsu /usr/share/opae/d5005/one-time-update/otsu.json \ --verify --log-level debug
- Confirm that the output matches the desired FIM and BMC version found in section Identifying the FIM and BMC Firmware Version.
Note: If you have programmed the root entry hash into the Intel® FPGA PAC, it will be erased during the FIM upgrade to version 2.0.1.
