1. Device-Specific Power Delivery Network (PDN) Tool 2.0 User Guide

1.2.2.8. Enlarged_Graph

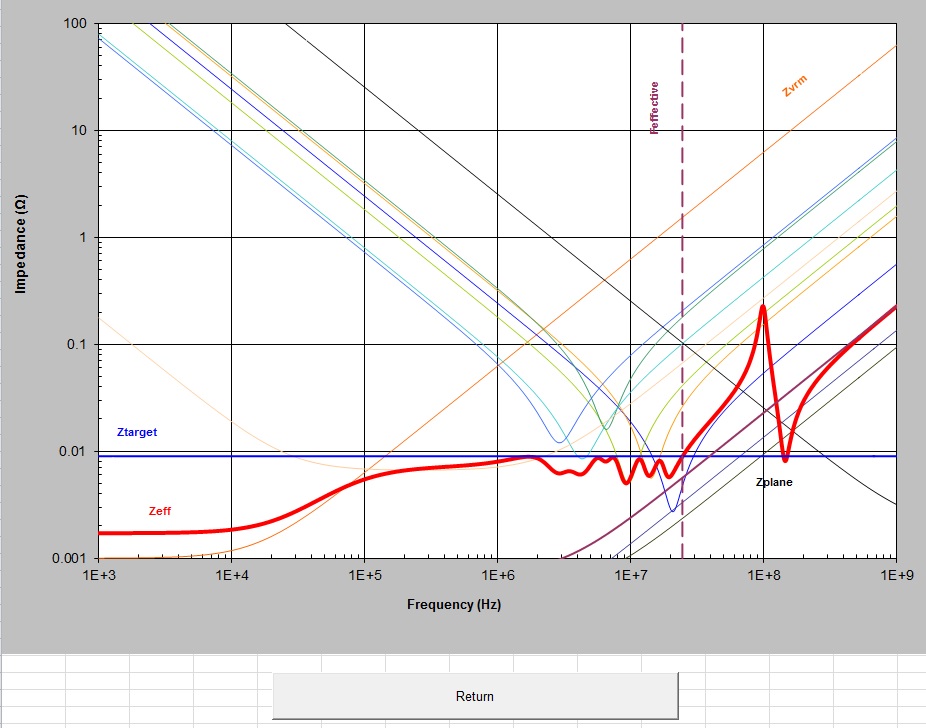

In the Enlarged_Graph tab, you can view the enlarged Z-profile plot. The PDN tool 2.0 switches to this tab when you click the Z-profile plot in the System_Decap tab. You can go back to the System_Decap tab when you click the Return button.

Figure 20. Enlarged_Graph Tab
