6.2.6. Analog Options

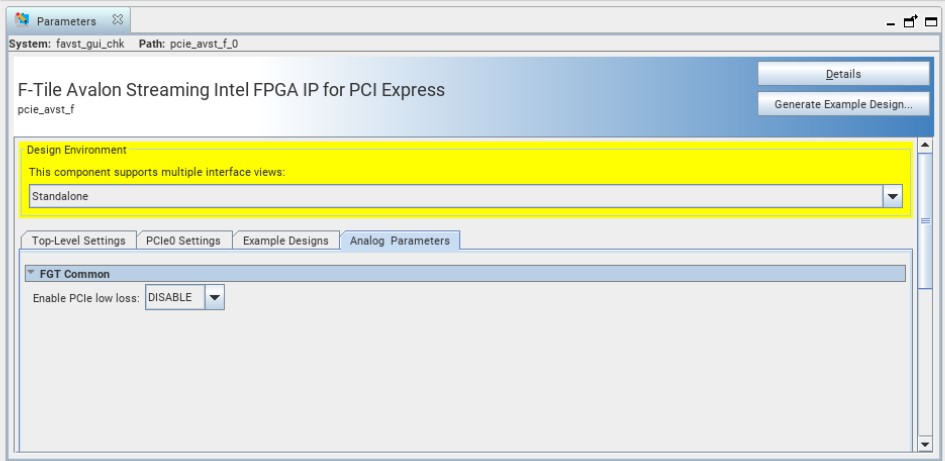

Figure 69. Analog Parameters Tab
Table 109.  Analog Parameters
Parameter Value Default Value Description
Enable PCIe low loss Disable/Enable Enable

When you select Enable, you enable the transceiver analog settings for low loss PCIe design.

Note: This parameter should only be enabled for chip-to-chip design where the insertion loss from endpoint silicon pad to root port silicon pad including the package insertion loss is below 8 dB at 8GHz.
