F-Tile PCIe Hard IP

The F-Tile Intel® Hard IP supports PCIe* configurations up to 4.0 x16 in Endpoint (EP), Root Port (RP), and Transaction Layer (TL) Bypass Modes. F-Tile serves as a companion tile for Agilex™ 7 devices.

F-Tile is the successor of P-Tile and natively supports PCIe 3.0 and 4.0 configurations.

Read the F-Tile Avalon® Streaming Intel® FPGA IP for PCIe user guide ›

Read the F-Tile Avalon® Streaming Intel® FPGA IP for PCIe design example user guide ›

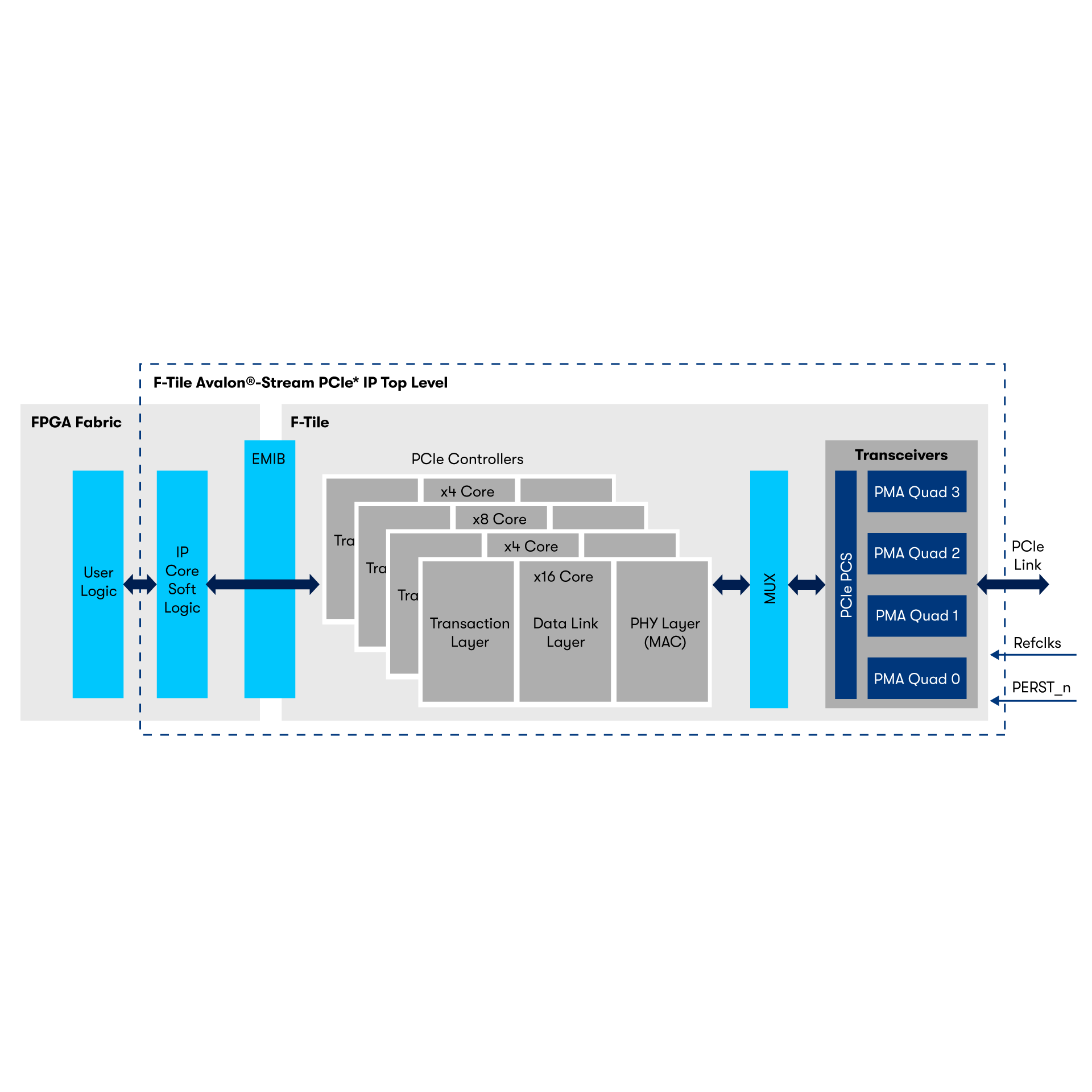

F-Tile PCIe Hard IP

Standards & Specifications Compliance

  • PCIe Base Specification Revision 4.0
  • Single Root I/O Virtualization and Sharing Specification, Rev 1.1
  • Address Translation Services, Revision 1.1
  • PHY Interface for PCIe Architectures, Version 4.0
  • Virtual I/O Device (VIRTIO) Version 1.0

Features

  • Includes a complete protocol stack including the Transaction, Data Link, and Physical Layers implemented as Hard IP
  • PIPE mode support
  • Natively supports PCIe* 4.0/3.0 configurations with support for 2.0/1.0 configurations support via link down-training
  • Supports Root Port and Endpoint modes
  • Support for TL-Bypass mode to enable either Up-port or Down-port functionality for working with fabric-based PCIe Switch IP
  • Various multilink EP, RP modes in lower width x4, x8 configurations available
  • Up to 512-byte Maximum Payload Size (MPS)
  • Up to 4096-byte (4 KB) Maximum Read Request Size (MRRS)
  • Single Virtual Channel (VC) Support
  • Supports Completion Timeout Ranges through Completion Timeout Interface
  • Atomic Operations (FetchAdd/Swap/CAS)
  • Support for various clocking modes: Common Reference Clock (refclk), Independent Reference Clock (refclk) with and without Spread spectrum (SRIS, SRNS)
  • Advanced Error Reporting
  • Precision Time Management (PTM)
  • ECRC generation and checking
  • Supports D0 and D3 PCIe power states
  • Lane margining at receiver
  • Retimers presence detection
  • Supports autonomous Hard IP mode that allows the PCIe Hard IP to communicate with the Host before the FPGA configuration and entry into user mode are complete
  • FPGA core Configuration via PCIe link (CVP Init and CVP Update) and Partial Reconfiguration (PR) over PCIe link

Multifunction and Virtualization Features

  • SR-IOV support (8 PFs, 2K VFs per each Endpoint)
  • VirtIO support via configuration intercept interface
  • Scalable I/O and Shared Virtual Memory (SVM) support
  • Access Control Service (ACS)
  • Alternative Routing-ID Interpretation (ARI)
  • Function Level Reset (FLR)
  • Support for TLP Processing Hint (TPH)
  • Address Translation Services (ATS)
  • Process Address Space ID (PasID)

User Interface Features

  • Avalon® Streaming Interface (Avalon-ST)
  • User packet interface with separate header, data, and prefix
  • Dual segmented user packet interface with the ability to handle up to two TLPs in any given cycle (x16 core only)
  • Extended Tag Support
  • 10-bit Tag Support (maximum of 768 outstanding tags (x16) / 512 outstanding tags (x4/x8) at any given time, for all functions combined)

Complementary IPs

  • Scalable Switch IP for PCI Express
  • Multi Channel DMA IP for PCI Express (AVMM / AVST Interfaces)

IP Debug Features

  • Debug toolkit features:
  • Protocol and link status information
  • Basic and advanced debugging capabilities including PMA register access and Eye Viewing capability

Driver Support

  • Ubuntu device drivers

IP Status



Ordering Status

No Ordering Code Required
