Intel® Arria® 10 and Intel® Cyclone® 10 PCIe Hard IP

Intel® Arria® 10 and Intel® Cyclone® 10 GX FPGAs include a configurable, hardened protocol stack for PCI Express* that is compliant with the PCI Express Base Specification 3.0 and PCI Express Base Specification 2.0 respectively. The hard IP provides the Avalon® Streaming (Avalon-ST) interface and can be configured for either Rootport (RP) or Endpoint (EP) modes.

Complementary soft IPs are available for single root I/O virtualization (SR-IOV) support and bridging to an Avalon Memory Mapped interface (Avalon-MM) with DMA functionality.

Intel® Arria® 10 and Intel® Cyclone® 10 GX Avalon-ST Interface for PCIe User Guide ›

Intel® Arria® 10 and Intel® Cyclone® 10 GX Avalon-ST Hard IP for PCIe Design Example User Guide ›

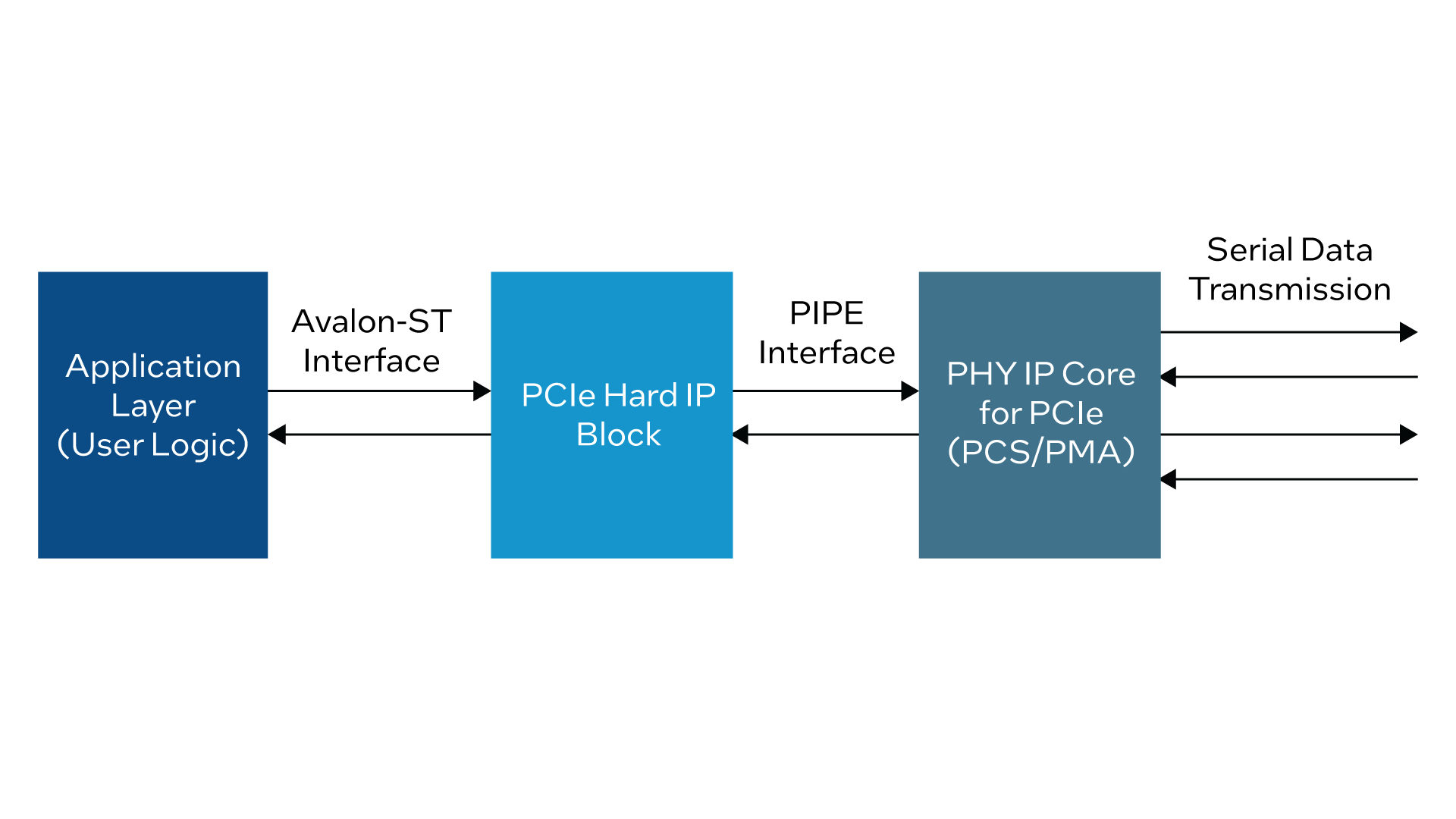

Intel® Arria® 10 and Intel® Cyclone® 10 PCIe Hard IP

Standards & Specifications Compliance

Intel Arria 10 PCIe Hard IP has successfully passed PCI-SIG compliance testing. Results posted on the PCI-SIG Integrators List.

Features

  • Complete protocol stack including the Transaction, Data Link, and Physical Layers implemented as hard IP.
  • Support for ×1, ×2, ×4, and ×8 configurations with Gen1, Gen2, or Gen3 lane rates for Native Endpoints in Intel® Arria® 10 devices.
  • Support for ×1, ×2, and ×4 configurations with Gen1 or Gen2 lane rates for Native Endpoints in Intel® Cyclone® 10 GX devices.
  • Dedicated 16 KB receive buffer.
  • Optional support for Configuration via Protocol (CvP) using the PCIe link allowing the I/O and core bitstreams to be stored separately.
  • Example designs demonstrating parameterization, design modules, and connectivity.
  • Extended credit allocation settings to better optimize the RX buffer space based on application type.
  • Support for multiple packets per cycle with the 256 bit Avalon ST interface.
  • Optional end-to-end cyclic redundancy code (ECRC) generation and checking and advanced error reporting (AER) for high reliability applications.
  • Support for Separate Reference Clock No Spread Spectrum (SRNS) architecture.

Complementary IPs

  • Intel Arria 10 and Intel Cyclone 10 GX Avalon Memory Mapped (Avalon-MM) Interface for PCI Express
  • Intel Arria 10 or Intel Cyclone 10 GX Avalon Memory Mapped (Avalon-MM) DMA for PCI Express Solutions

Driver Support

  • Linux device drivers

IP Quality Metrics

Basics

Year IP was first released

2016

Status

Production

Deliverables

Customer deliverables include the following:

Design file (encrypted source code or post-synthesis netlist)

Timing and/or layout constraints

Documentation with revision control



Y

Y

Y

Any additional customer deliverables provided with IP

Testbench and design examples

Parameterization GUI allowing end user to configure IP

Y

IP core is enabled for Intel FPGA IP Evaluation Mode Support

Y

Source language

Verilog

Testbench language

Verilog

Software drivers provided

Y

Driver OS Support

Linux

Implementation

User interface

Avalon streaming, Avalon memory mapped

IP-XACT metadata

N

Verification

Simulators supported

NCSim, Ccelium, ModelSim, VCS

Hardware validated

Intel® Arria® 10

Industry standard compliance testing performed

Y

If Yes, which test(s)?

PCI-SIG

If Yes, on which Intel FPGA device(s)?

Intel® Arria® 10

If Yes, date performed

Dec 2016 / Aug 2017

If No, is it planned?

N/A

Interoperability

IP has undergone interoperability testing

Y

View all Show less
