Intel® Arria® 10 GX FPGA Development Kit

The Intel® Arria® 10 GX FPGA Development Kit delivers a complete design environment that includes all hardware and software you need to start taking advantage of the performance and capabilities available in Intel® Arria® 10 GX FPGAs for your design needs.

  • Overview

You can use this development kit to:

  • Develop and test PCI Express* (PCIe) 3.0 designs using the PCI-SIG*-compliant development board.
  • Develop and test memory subsystems consisting of DDR4, DDR3, QDR IV, and RLDRAM III memories.
  • Develop modular and scalable designs by using the FPGA mezzanine card (FMC) connectors to interface to a FMC mezzanine card provided by Intel partners and supporting protocols, such as JESD204B, Hybrid Memory Cube, Bandwidth Engine 2, Serial RapidIO*, 10 Gbps Ethernet (10GbE), SONET, Common Public Radio Interface (CPRI), OBSAI, and many others.

Table 1. Ordering Information

Ordering Code Buy Device Contact Distributor for more information
DK-DEV-10AX115S-A
Buy now 10AX115S2F45I1SG
  • Step 1: Copy the Dev Kit Ordering Code
  • Step 2: Select an Intel Distributor from Intel® Solutions Marketplace
  • Step 3: Fill out contact form and include the Dev Kit Ordering Code
View all Show less

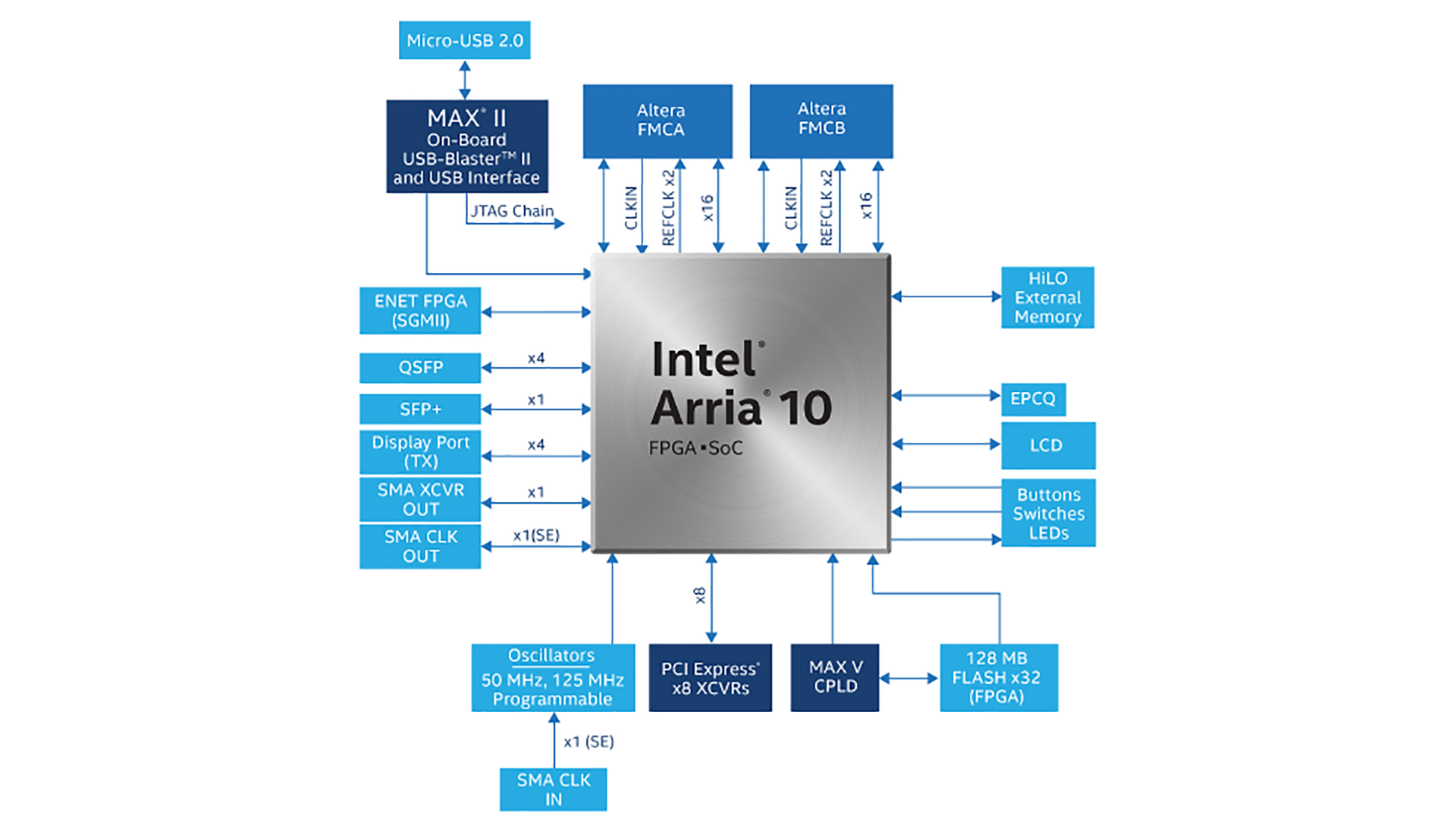

Table 2. Development Kit Contents and Features

Parameters Hardware
Device Intel® Arria® 10 GX FPGA development board running on Intel® Arria® 10 GX 10AX115S2F45I1SG2 FPGA
Form Factor PCIe x8 edge connector
Features and Connectors
  • Two FMC loopback cards supporting transceiver, LVDS and single-ended I/Os.
  • Two FMC low-pin count (LPC + 15 transceivers) connector
  • Serial digital interface (SDI) channel
  • Character LCD
  • One quad small-form-factor pluggable (QSFP) and one SFP+ port.
DDR Memory 2GB DDR4 SDRAM, 2GB DDR3 SDRAM, and RLDRAM3 (16 Meg x 36) daughtercards.
Cables and Adapters AC adapter power, and Ethernet USB cables
Software A one-year license for the Intel® Quartus® Prime Pro Edition design software is included with the purchase of the kit. Refer to Intel® FPGA Software Installation and Licensing for more information
View all Show less

Table 3. Documentation

Design Files Content Descriptions
User Guide (Production Edition) › Documentation about setting up the development kit and using the included software.
Quick Start Guide (Production Edition) › Documentation summarizing the usage of the development kit and its features.
Installer Package (Production Edition) › A single installation file containing:
  • User Guide - Contains the user guide
  • Design Files - Contains schematics, and layout, Assembly, Bill of Materials
  • Board Test System: BTS GUI, Power GUI and Clock GUI
  • Golden Top project for pinout assignments management
  • Design Examples: Memory, XCVR, GPIO and PCIe 4.0
Note: You will need to install Intel® Quartus® Prime Software v16.1 or later for the BTS. If you are not sure, download and install the latest release. Download the zip file, and install the Intel® Arria® 10 SoC Board Test System.
Board Schematic › Rev E 3.1 Schematic.
Golden Systems Top (Production Edition) ›

Reference design that contains device pinout for use as a starting point to designing with the Intel® Arria® 10 GX FPGA Development Kit.

Please refer to the GSRD compatibility matrix to pick the correct GSRD version for your board.

View all Show less

Additional Resources

Find Boards

Find the right development board for your needs.

Explore Boards

Design Store

Intel® FPGA design examples provide efficient solutions for common design challenges. Visit the Design Store for Intel® FPGAs and RocketBoards.org to learn more.

Support Community

Find solutions, view comments and engage with other Intel® users around the world.

Intel Support Community
