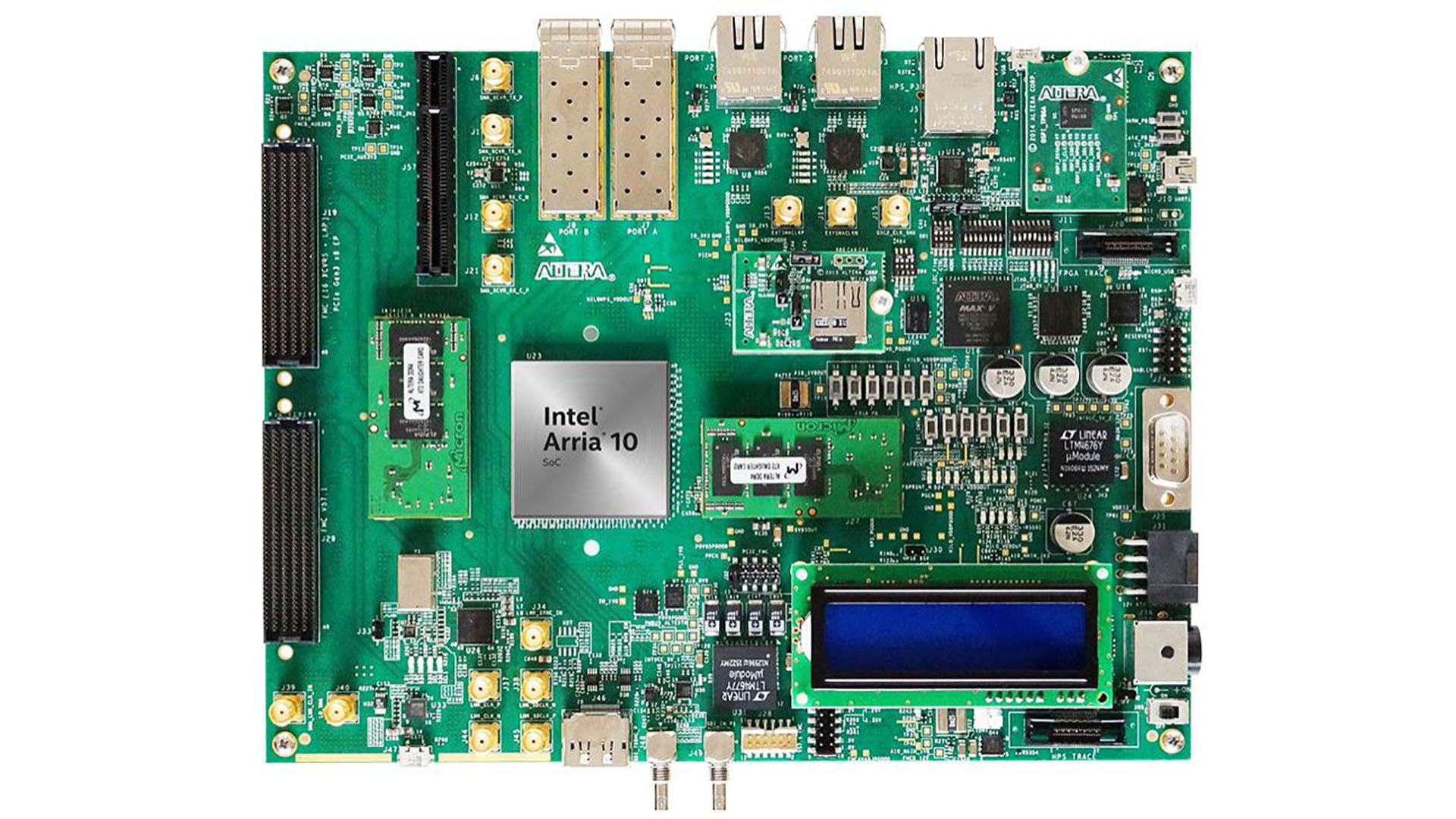

Intel® Arria® 10 SX SoC Development Kit

The Intel® Arria® 10 SoC Development Kit offers a quick and simple approach for developing custom Arm* Development Studio (DS) for Intel® SoC FPGA processor-based SoC designs. Design productivity is one of the driving philosophies of Intel® Arria® 10 SoC architecture. Intel® Arria® 10 SoCs offer full software compatibility with previous generation SoCs, a broad ecosystem of Arm* DS for Intel® SoC FPGA software and tools, and the enhanced FPGA and digital signal processing (DSP) hardware design flow.

  • Overview

With this kit, you can:

  • Evaluate Intel® Arria® 10 SoC device features and performance.
  • Begin development of your hardware and software design.
  • Use as a platform for target reference designs, OS/BSP, and tools.

Intel® Arria® 10 SoCs have been designed to meet the performance and power requirements for mid-range applications such as:

  • Wireless infrastructure equipment including remote radio unit and mobile backhaul**.
  • Compute and storage equipment including flash cache, cloud computing, and acceleration**.
  • Broadcast studio and distribution equipment including professional A/V and video conferencing**.
  • Military guidance, control, and intelligence equipment**.
  • Wireline 100G line cards, bridges and aggregation, 40G GPON**.
  • Test and measurement equipment**.
  • Diagnostic medical imaging equipment**.
  • PCI Express* (PCIe*) 3.0 x8 lanes (endpoint or root port)**.

**Application-specific daughtercards, available separately, supporting a wide range of I/O and interface standards.

Table 1. Ordering Information

Ordering Code Buy Device Contact Distributor for more information
DK-SOC-10AS066S-D Buy now 10AS066N3F40E2SG

Steps 1: Copy the Dev Kit Ordering Code

Step 2: Select an Intel Distributor from Intel® Solutions Marketplace

Step 3: Fill out contact form and include the Dev Kit Ordering Code

View all Show less

Table 2. Development Kit Contents and Features

Parameters Hardware

Device

Intel® Arria® 10 10AS066N3F40E2SG1 SoC

Form Factor

PCI Express (PCIe) 3.0 x8, Dual FPGA mezzanine card (FMC) expansion headers

Features and Connectors
  • Two 10/100/1000 SGMII Ethernet ports
  • One 10/100/1000 RGMII Ethernet port
  • Two 10GbE small form factor pluggable (SFP) cages
  • One FMC loopback card
  • USB On-The-Go (USB OTG) port
  • Display port and serial digital interface (SDI) port



DDR Memory



1GB DDR4 HPS HILO memory card

2GB DDR4 HILO memory card

Cables and Adapters

AC adapter, power, Embedded Intel® FPGA Download Cable II for hard processor system (HPS) or FPGA programming

Software A one-year license for the Intel® Quartus® Prime Pro Edition design software is included with the purchase of the kit. Refer to Intel® FPGA Software Installation and Licensing for more information
View all Show less

Table 3. Documentation

Design Files Content Descriptions
User Guide (Production Edition) › Documentation about setting up the development kit and using the included software.
Quick Start Guide (Production Edition) › Documentation summarizing the usage of the development kit and its features.
Installer Package (Production Edition) ›

A single installation file containing:

  • User Guide - Contains the user guide
  • Design Files - Contains schematics, and layout, Assembly, Bill of Materials
  • Examples - Board Test System: BTS GUI, Power GUI and Clock GUI
  • Examples - Golden Top project for pinout assignments management
  • Examples - Design Examples: Memory, XCVR, GPIO and PCIe 4.0

Download the zip file, and install the Intel® Arria® 10 SoC Board Test System.

Board Schematic ›
Production Kit schematic, Rev C
Intel® Arria® 10 GSRD (Golden System Reference Design) ›

Intel® Arria® 10 GSRD (Golden System Reference Design) page on Rocketboards.org for instructions to create an SD card image

Please refer to the GSRD compatibility matrix to pick the correct GSRD version for your board.

View all Show less

Additional Resources

Find Boards

Find the right development board for your needs.

Explore Boards

Design Store

Intel® FPGA design examples provide efficient solutions for common design challenges. Visit the Design Store for Intel® FPGAs and RocketBoards.org to learn more.

Support Community

Find solutions, view comments and engage with other Intel® users around the world.

Intel Support Community

Show more Show less
