3.2.1. CSR AXI4-Lite Driver Parameters

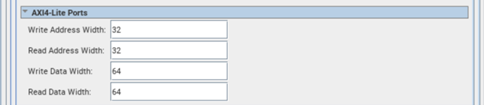

Figure 4. Group:Drivers / AXI4-Lite Ports
Table 5.
Display Name Description
Write Address Width Specifies width of AWADDR port of the AXI4-Lite bus. The supported range for this parameter is from 1 to 64. Default value is 32.
Read Address Width Specifies width of ARADDR port of the AXI4-Lite bus. The supported range for this parameter is from 1 to 64. Default value is 32.
Write Data Width Specifies width of WDATA port of the AXI4-Lite bus. The supported values for this parameter are 32 and 64. Default value is 32.
Read Data Width Specifies width of RDATA port of the AXI4-Lite bus. The supported values for this parameter are 32 and 64. Default value is 32.
