External Memory Interfaces Intel® Arria® 10 FPGA IP Design Example User Guide

ID 683842
Date 3/29/2021
Public

1.1. Creating an EMIF Project

For the Intel® Quartus® Prime software version 17.1 and later, you must create an Intel® Quartus® Prime project before generating the EMIF IP and design example.

  1. Launch the Intel® Quartus® Prime software and select File > New Project Wizard. Click Next.

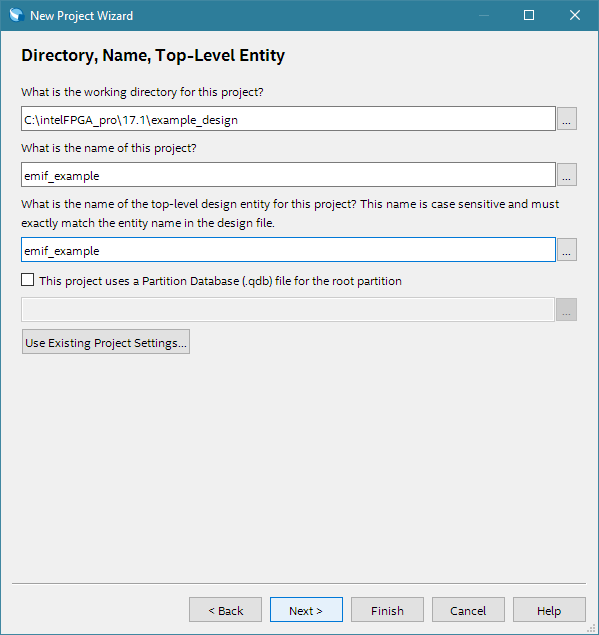

  2. Specify a directory and name for the project that you want to create. Click Next.

  3. Verify that Empty Project is selected. Click Next two times.

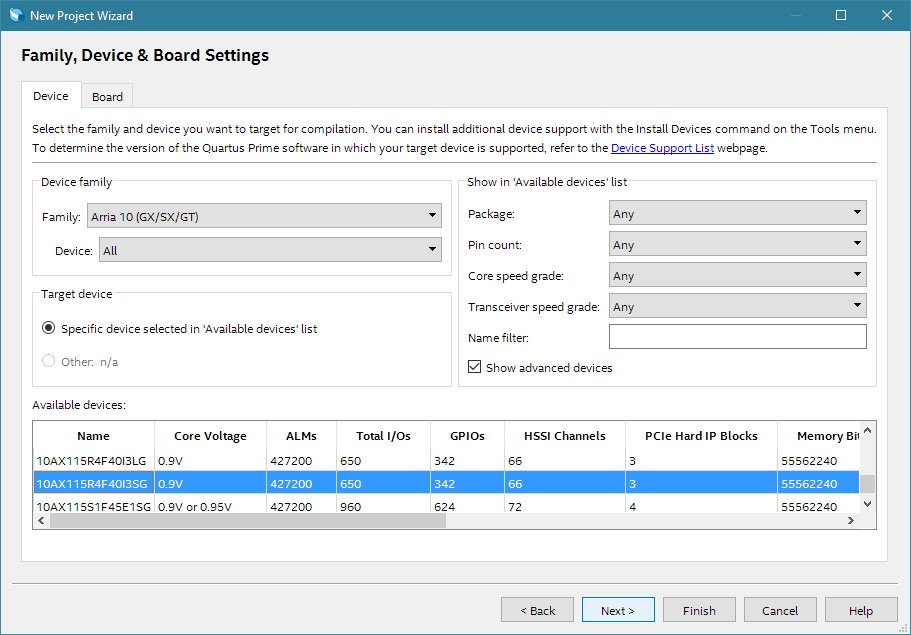

  4. Under Name filter, type the device part number.
  5. Under Available devices, select the appropriate device.

  6. Click Finish.
