4.2.3. Intel® FPGA PTC Field Types

The Intel® FPGA Power and Thermal Calculator (PTC) data entry pages include input fields that allow you to specify the properties of your design that impact power estimation.

The shading of the editable input fields alternates between white and light gray. Double-click in the field and select a value from the list or type the value.

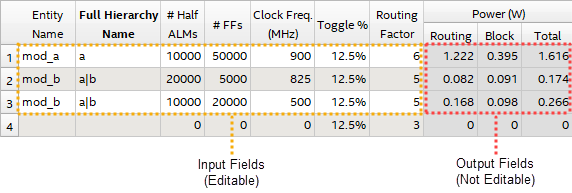

Figure 18.  Intel® FPGA PTC Data Entry Page Field Types

The output fields in the data entry pages report calculated values, and appear in darker gray. Fixed input fields, and fields that are not applicable have dimmed text.
