Support for the Cyclone® V SoC Development Kit Reference Platform is based on the Stratix® V Reference Platform (s5_ref), available with the Intel® FPGA SDK for OpenCL™ . The overall organization of the c5soc Platform Designer (Standard) system and the kernel driver are very similar to those in s5_ref.
The following FPGA core components are the same in both c5soc and s5_ref:
- VERSION_ID block
- Rest mechanism
- Memory bank divider
- Cache snoop interface
- Kernel clock
- Control register access (CRA) blocks

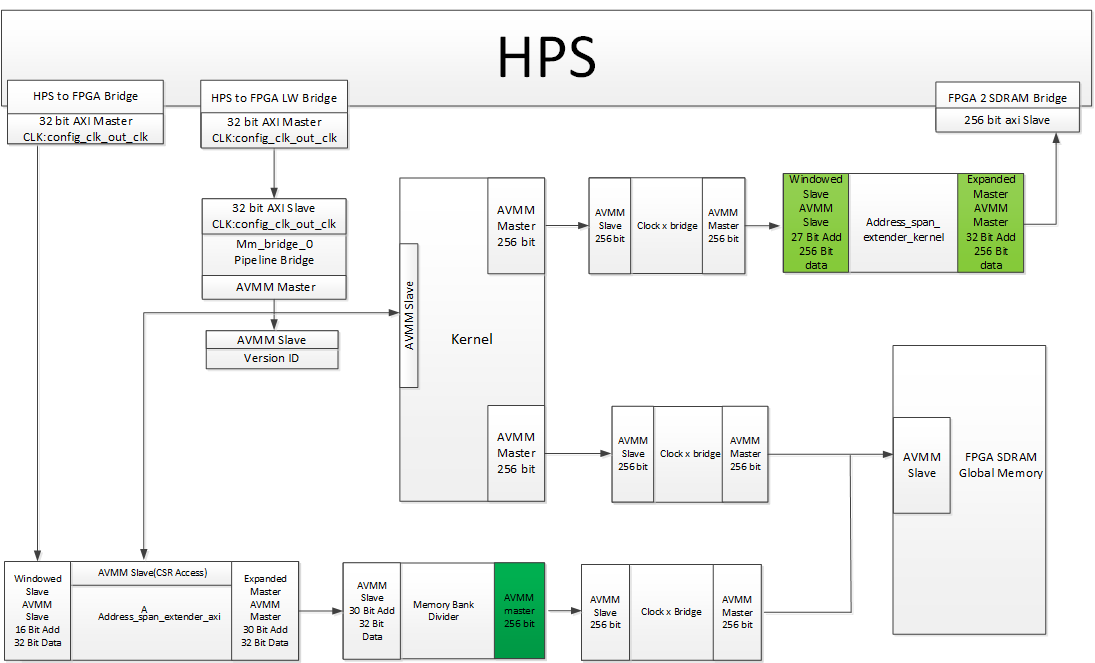

Figure 1. Cyclone® V SoC Architecture
