2.1. Creating an EMIF Project

For the Intel® Quartus® Prime software version 17.1 and later, you must create an Intel® Quartus® Prime project before generating the EMIF IP and design example.

  1. Launch the Intel® Quartus® Prime software and select File > New Project Wizard. Click Next.

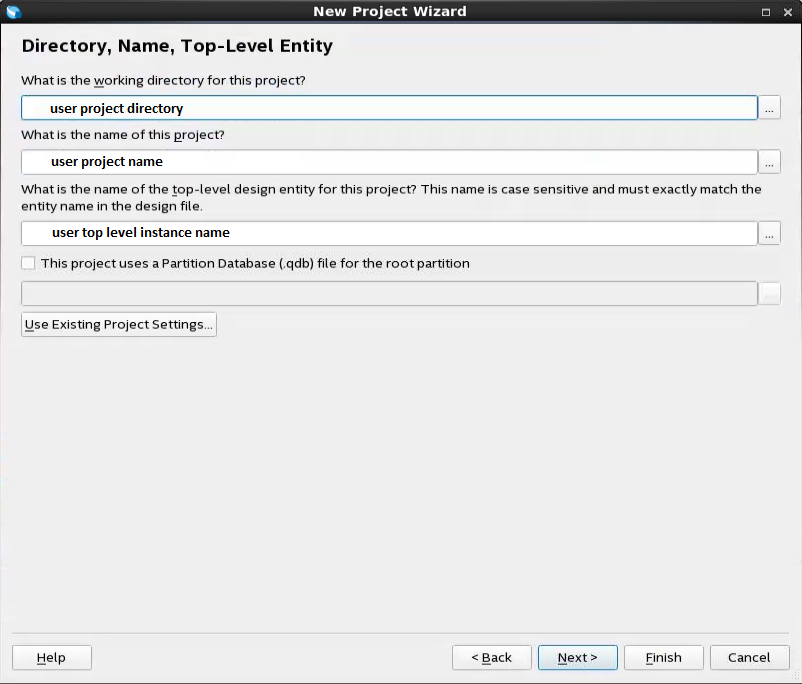

  2. Specify a directory (<user project directory>), a name for the Intel® Quartus® Prime project (<user project name>), and a top-level design entity name (<user top-level instance name>) that you want to create. Click Next.

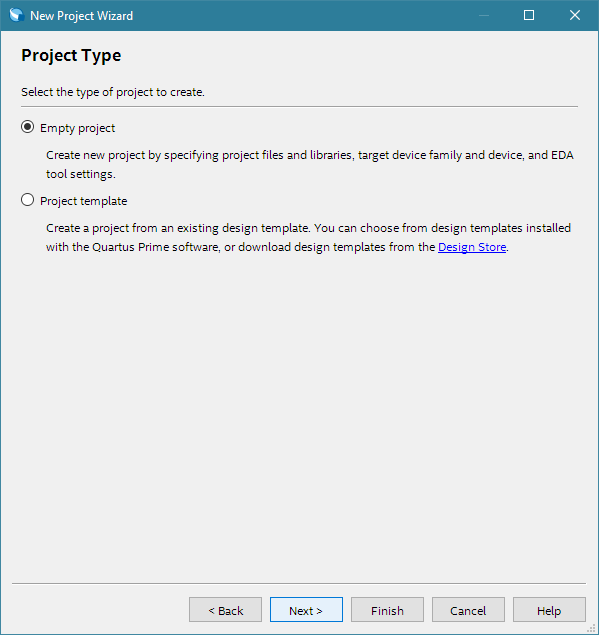

  3. Verify that Empty Project is selected. Click Next two times.

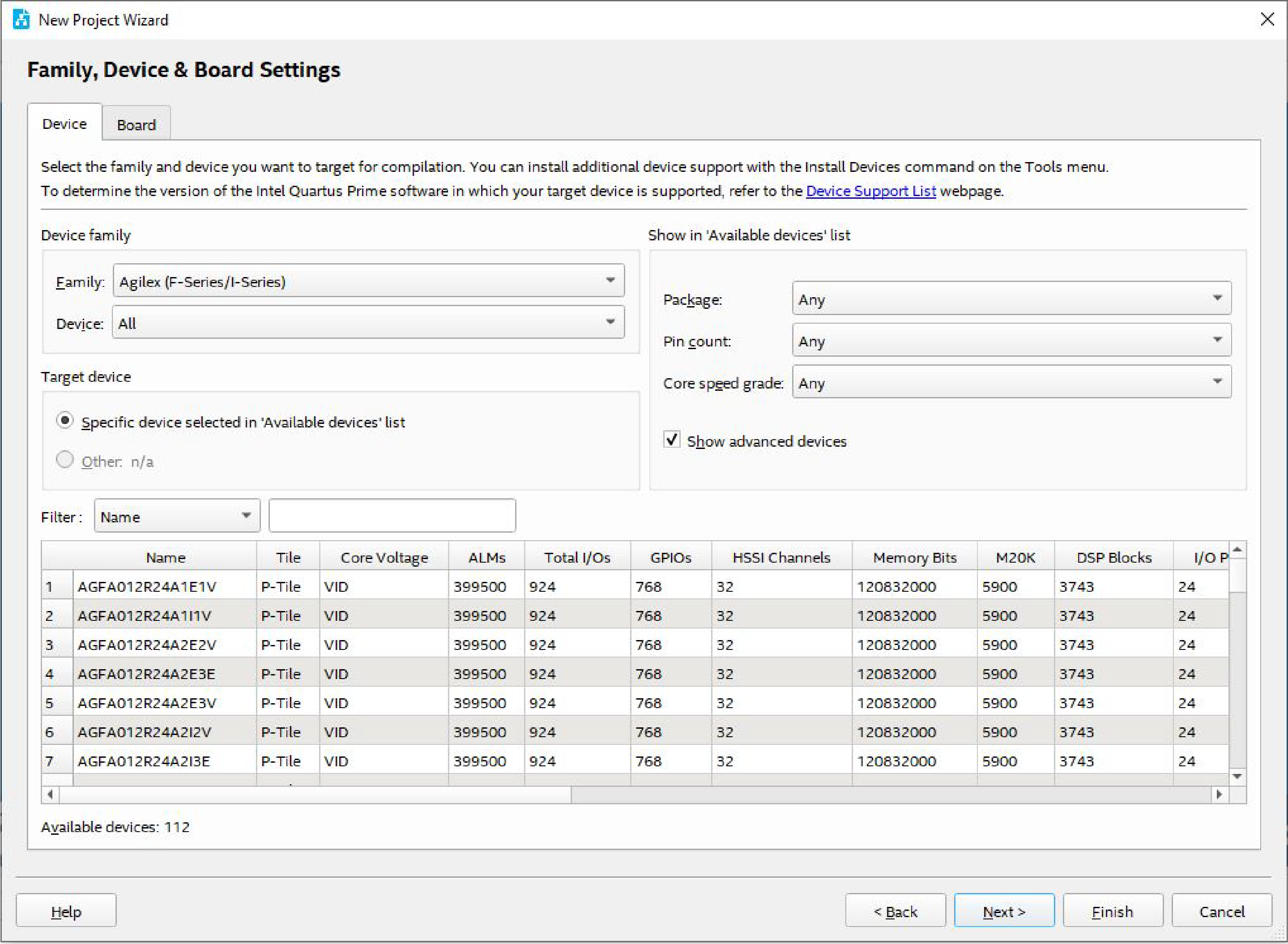

  4. Under Family, select Intel® Agilex™ 7.
  5. Under Name filter, type the device part number.
  6. Under Available devices, select the appropriate device.

  7. Click Finish.
