Toggle Register Generated Clock

Use a toggle register to create a divide-by-two clock. If the data feeding the toggle register is at a logical “1” value and fed by a 10 ns period clock, the output of the register is a clock with a period of 20 ns.

The constraints for the toggle register clock is very similar to the previous example.

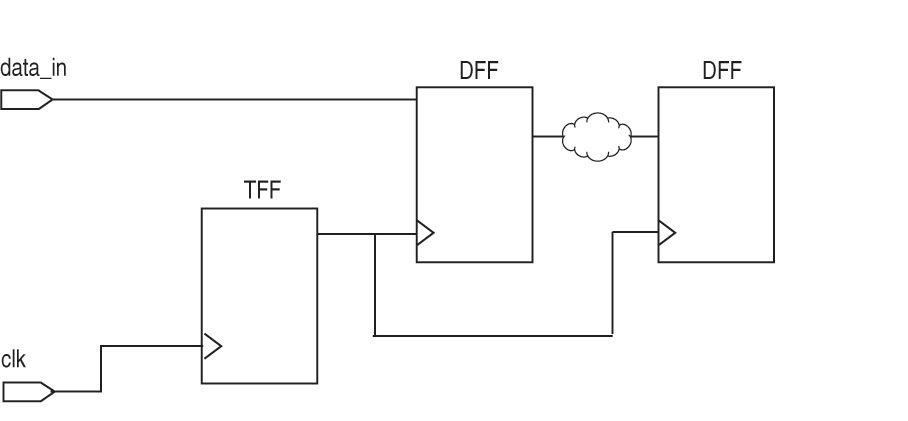

Figure 5. Toggle Register Generating a Divide-by-Two Clock

Toggle Register Constraints

# Create a base clock
create_clock \
	-period 10.000 \
	-name clk \
	[get_ports {clk}]
# Create the generated clock on the output
# of the toggle register.
create_generated_clock \
	-name tff_clk \
	-source [get_ports {clk}] \
	-divide_by 2 \
	[get_pins {tff|q}]
