Intel® Stratix® 10 MX FPGA

Intel® Stratix® 10 MX FPGA is the essential multi-function accelerator for high performance computing (HPC), data center, virtual networking functions (NFV), and broadcast applications. These devices combine the programmability and flexibility of Intel® Stratix® 10 FPGA and SoC FPGA with 3D stacked high-bandwidth memory 2 (HBM2). The Intel® Hyperflex™ FPGA Architecture enables high-performance core fabric that can efficiently utilize the bandwidth from the in-package memory tile. The DRAM memory tile is physically connected to the FPGA using Intel’s Embedded Multi-Die Interconnect Bridge (EMIB) technology.

See also: FPGA Design SoftwareDesign StoreDownloadsCommunity, and Support

Intel® Stratix® 10 MX FPGA

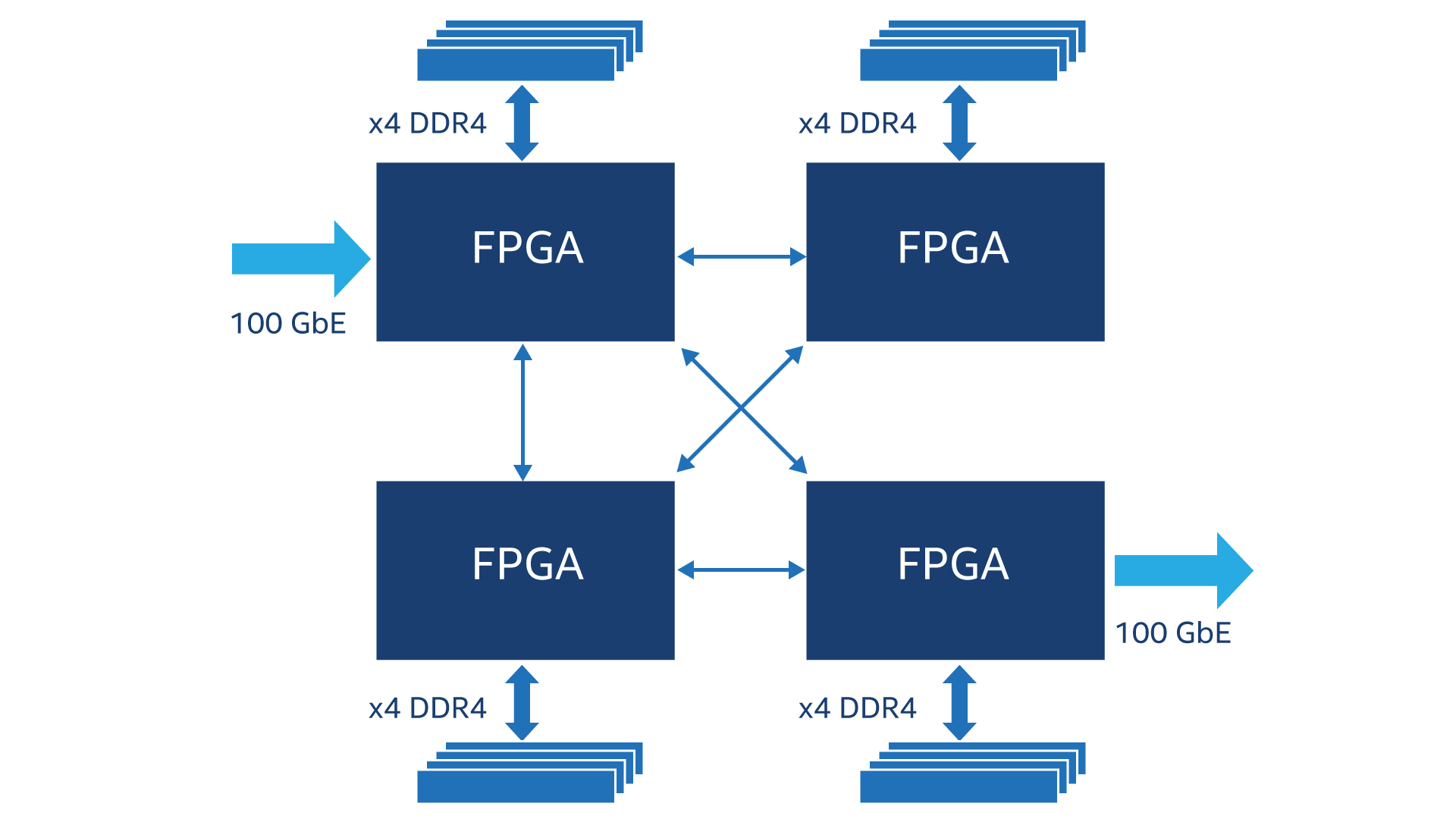

Enabling New Network Infrastructure

Optimal 200G, 256K queue traffic manager Eliminate external memory DIMMs
  • Each Intel Stratix 10 MX HBM2 tile enables 4 GB capacity
  • A single Intel Stratix 10 MX HBM2 tile eliminates 6 external 1,200 MHz DDR4 DIMMs

Low-Latency DPI

Low-latency path to rule database Smaller on-board footprint
  • Intel® Stratix® 10 MX devices store the entire database and allow low-latency access to the regular expression engine
  • Intel® Stratix® 10 MX devices eliminate the need for on-board DIMMs

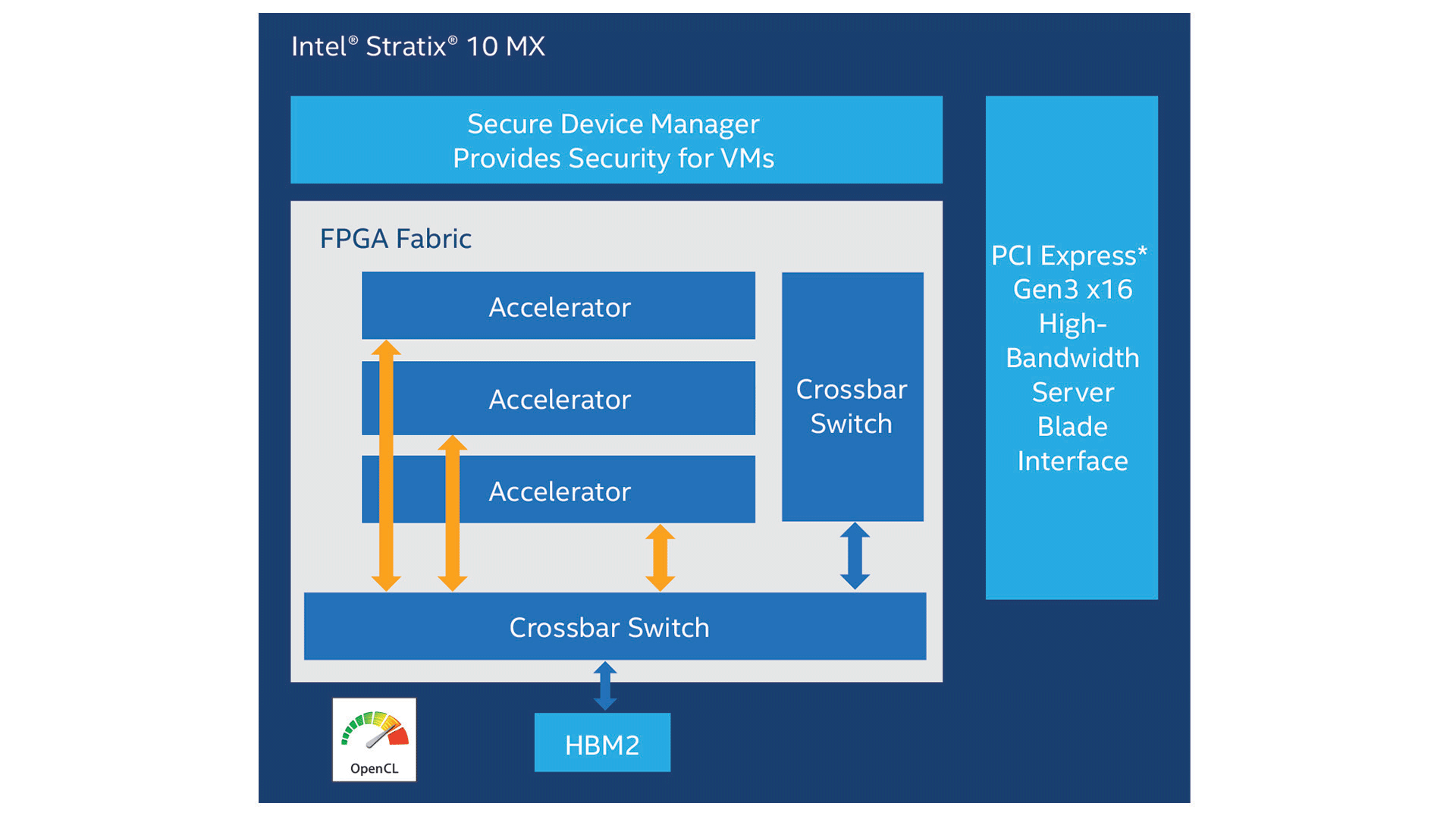

Deep Learning and Machine Learning

High-performance accelerators Efficient parallel computing
  • Up to 6 TFLOPS
  • Enhanced image classification performance with up to 512 GBps of memory bandwidth
  • 64 memory channels for efficient processing of multiple parallel threads
  • Improved performance at a fraction of the power due to reduced need for bank activates and precharge

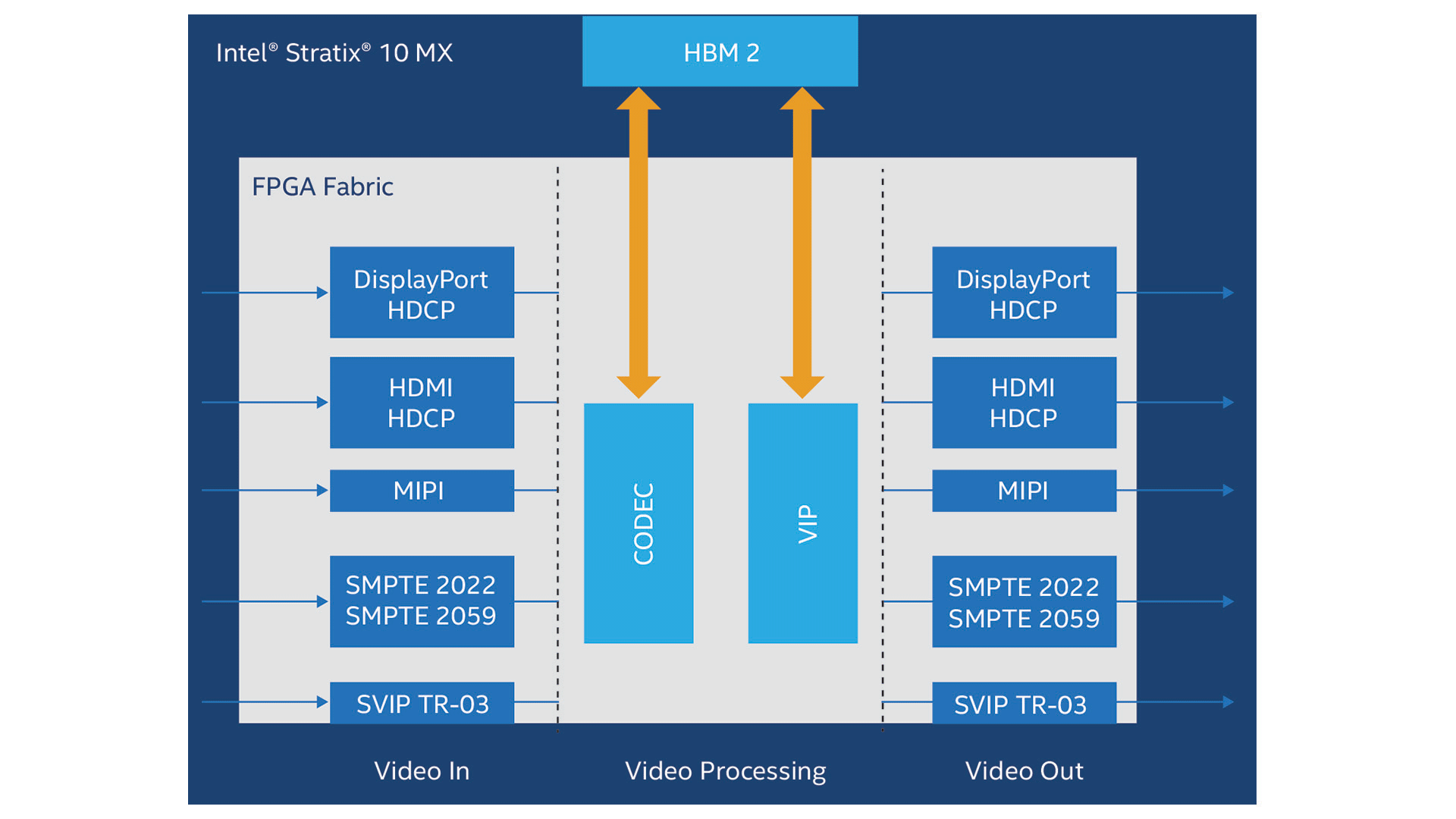

Enabling Next-Gen Media Processing

High throughput with low latency High-bandwidth memory enables improved performance for video processing blocks
  • > 120 frame per second (fps)
  • Media at 8K resolution
  • High dynamic range
  • Scaling
  • De-interlacing
  • Frame buffering
  • CODEC engines

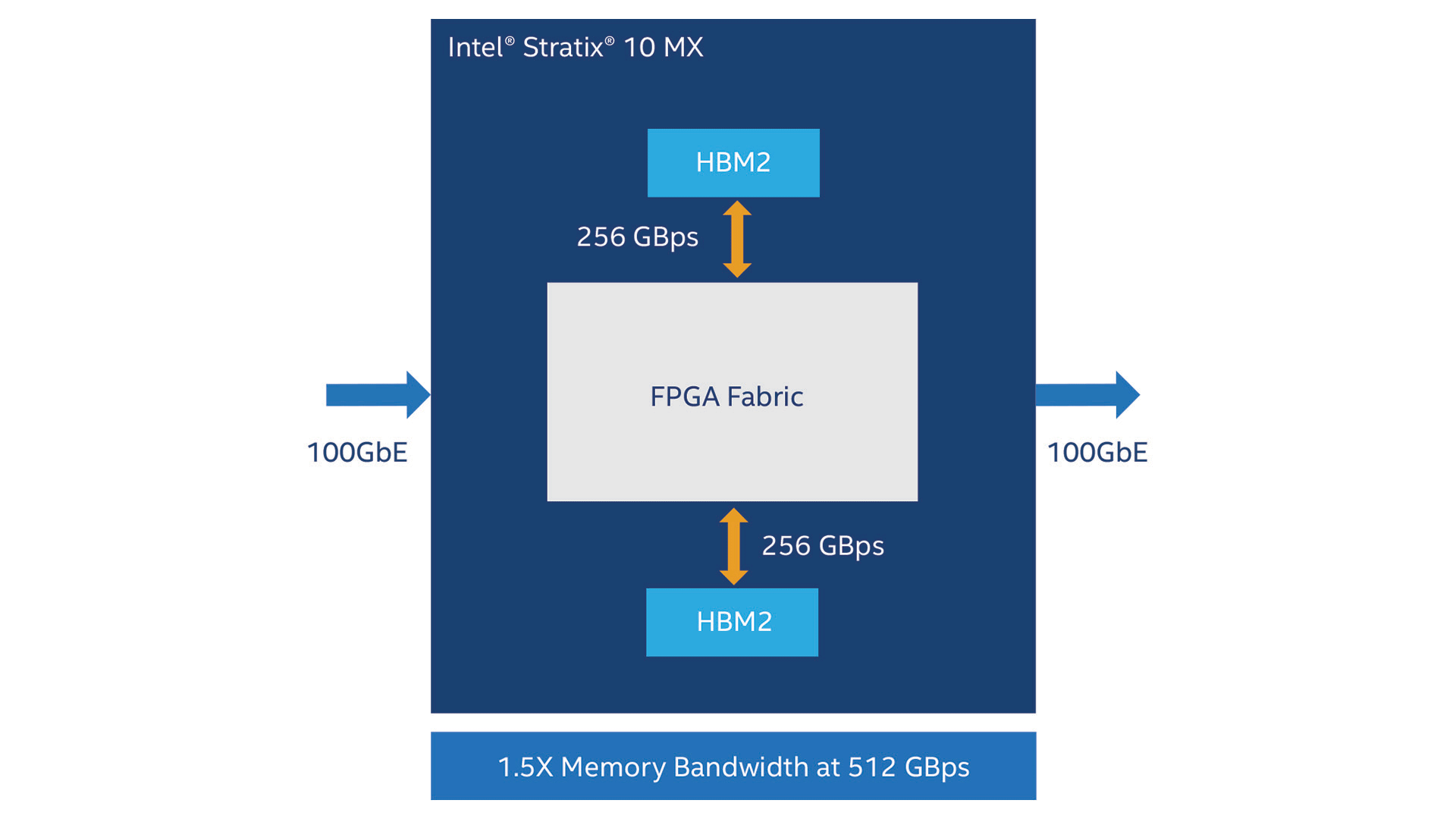

Efficient Big Data Analytics Applications

Highest performance per watt High throughput, less complex design
  • Up to 10 TFLOPS single-precision floating point performance
  • Significant reduction in power and form factor relative to traditional implementation
  • 512 GBps of memory bandwidth delivers 1.5X memory bandwidth
  • Maintain data momentum with a unified database
