RapidIO Intel® FPGA IP

Intel is discontinuing the intellectual property (IP) for RapidIO I and RapidIO II, more information can be found in the product discontinuance notification (PDN2025).

RapidIO Intel® FPGA IP

Intel offers two distinct Intel® FPGA IPs for RapidIO:

  • RapidIO II Intel® FPGA IP complies with the RapidIO Specification Revision 2.2

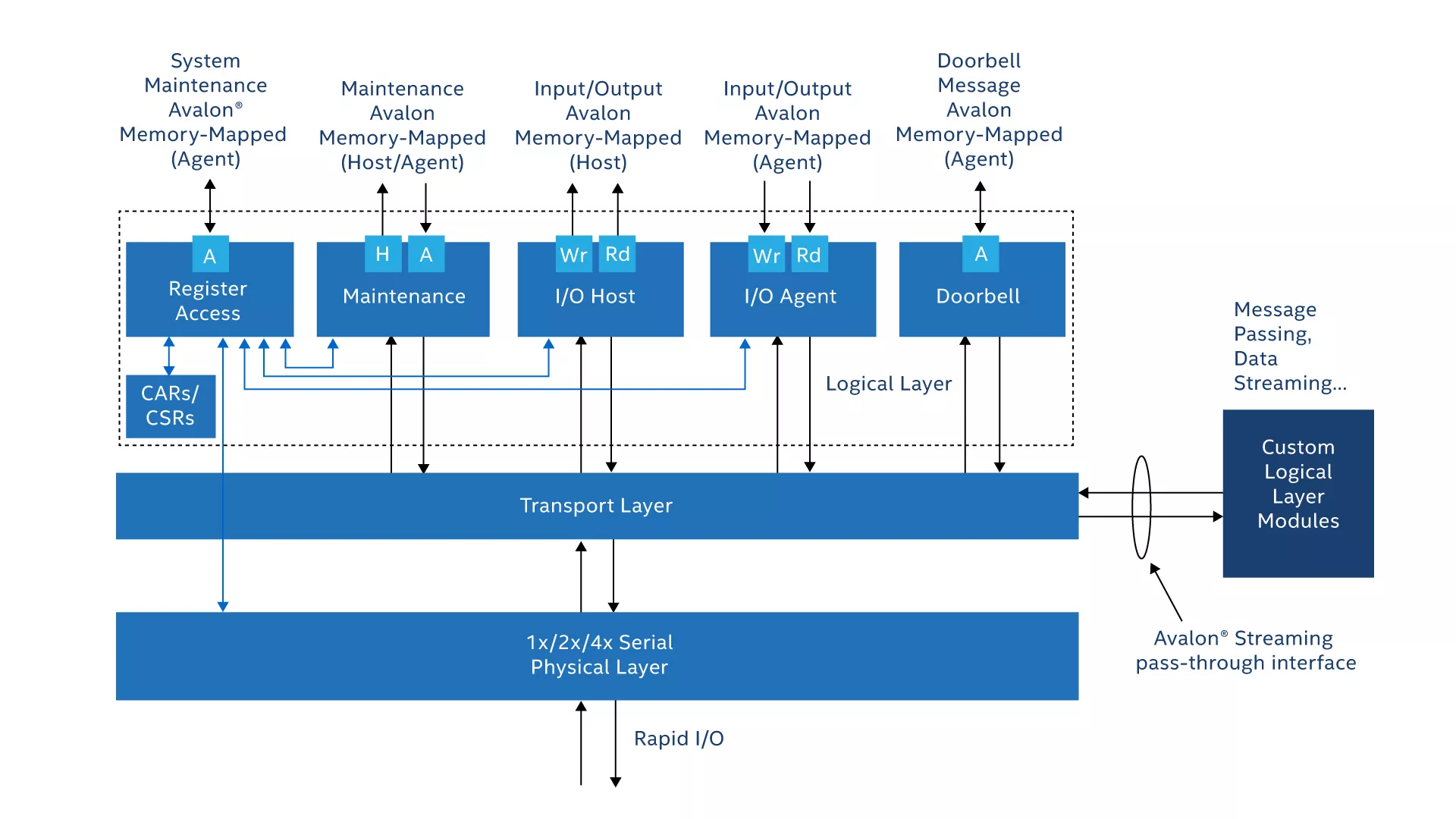

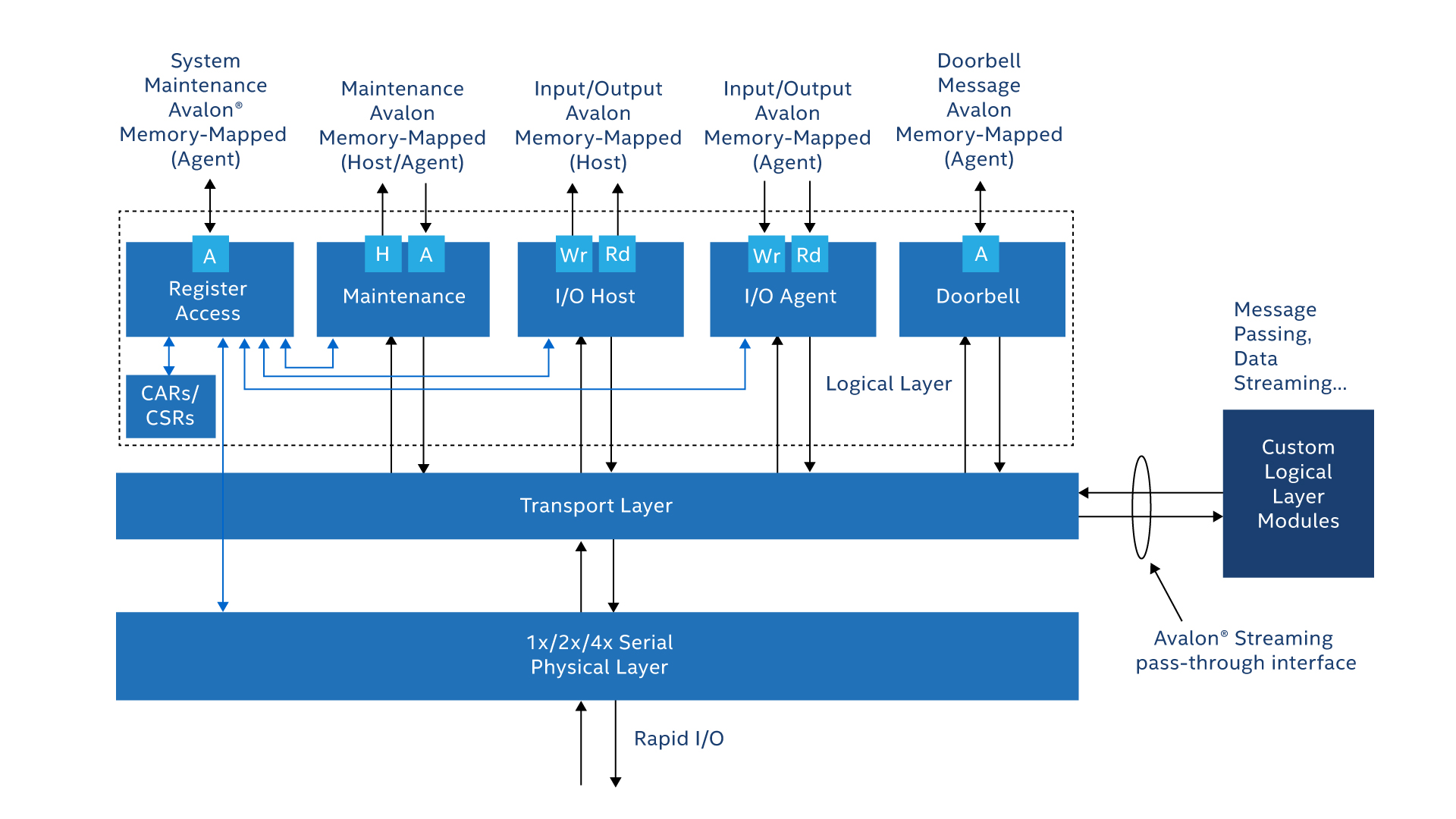

  • Physical, transport, and logical layer separations (modular architecture)
  • IDLE2 sequence - long control symbol
  • 1.25, 2.5, 3.125, 5.0 and 6.25 Gbaud lane rates with 1X, 2X, and 4X link widths
  • RapidIO Intel® FPGA IP complies with the RapidIO Specification Revisions 1.3 / 2.1
  • Physical, transport, and logical layer separations (modular architecture)
  • IDLE1 sequence - short control symbol
  • 1.25, 2.5, 3.125, and 5.0 Gbaud lane rates with 1X and 4X link widths

For device support details, such as lane rates, link widths, and speed grades, refer to the RapidIO Intel® FPGA IP user guides.

Features

A significant portion of the wireless industry adopts the RapidIO standard as a high-speed interconnect. The RapidIO standard is typically used between digital signal processors as well as between the control plane processors and memory. RapidIO is also gaining acceptance as a backplane interconnect due to its adoption of widely used standards for the electrical characteristics of the physical media attachment (PMA), such as XAUI or CEI for up to 6.25 Gbaud data rate. Intel® FPGAs are also capable of supporting RapidIO Gen3 data rates.

  • PHY based on embedded transceivers
  • Easy to use
  • Intellectual property (IP) parameter editor allows easy manual optimization of parameters, such as interface FIFO depths, address translation windows, output differential voltage, and pre-emphasis
  • Easy configuration provides ways to reduce resource utilization to create smaller Intel® FPGA IP function variations depending on application needs
  • Platform Designer for system interconnect
  • Robust solution
  • Endpoint IP core, testbenches with proven interoperability with leading digital signal processor and switch vendors
  • Compliant to RapidIO specification, Revision 1.3 / 2.1 and 2.2

For a system-level integration-ready solution, you can save several months of design time by selecting all RapidIO layers—including features, such as address translation as well as simple Avalon® Memory-Mapped (Avalon-MM) and Avalon® Streaming (Avalon-ST) FIFO interfaces.

Protocol Solution

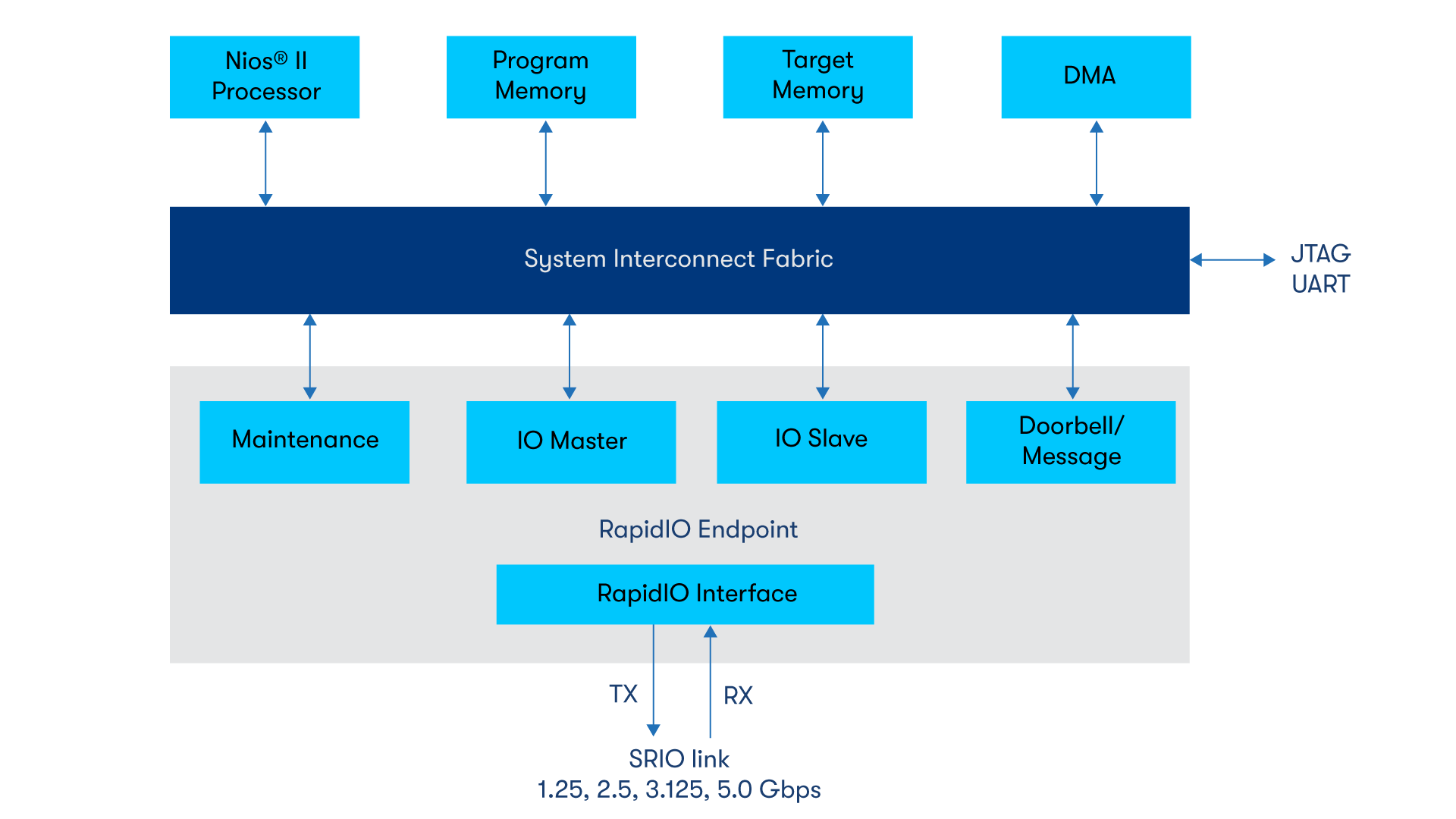

One of the images shows an example of a system built using the Platform Designer with a Nios® II soft embedded processor as a processing element. The program memory can include “boot code” for system-level enumeration of the various endpoints. The program also configures the capability address registers of the endpoints and the Intel® FPGA IP function.

IP Quality Metrics

Basics

Year IP was first released

2009

Latest version of Intel Quartus Prime Software supported

18.1

Status

Production

Deliverables

Customer deliverables include the following:

    Design file (encrypted source code or post-synthesis netlist)

    Simulation model for ModelSim*-Intel FPGA Edition

    Timing and/or layout constraints

    Testbench or design example

    Documentation with revision control

    Readme file



    Yes

    Yes

    Yes

    Yes

    Yes

    No

Any additional customer deliverables provided with IP

None

Parameterization GUI allowing end user to configure IP

Yes

IP core is enabled for Intel FPGA IP Evaluation Mode Support

Yes

Source language

Both Verilog and VHDL

Testbench language

Both Verilog and VHDL

Software drivers provided

No

Driver operating system (OS) support

N/A

Implementation

User interface

Avalon-MM, Avalon-ST

IP-XACT metadata

No

Verification

Simulators supported

ModelSim*, VCS, Riviera-PRO, NCSim

Hardware validated

Intel Arria 10, Arria V, Intel Cyclone 10 GX, Cyclone V, Intel Stratix 10, Stratix V

Industry-standard compliance testing performed

No

If Yes, which test(s)?

N/A

If Yes, on which Intel FPGA device(s)?

N/A

If Yes, date performed

N/A

If No, is it planned?

No

Interoperability

IP has undergone interoperability testing

Yes

If yes, on which Intel FPGA device(s)

Arria V, Intel Arria 10, Intel Cyclone 10 GX, Intel Stratix 10

Interoperability reports available

Yes
